Iscar ISCAR 5505240

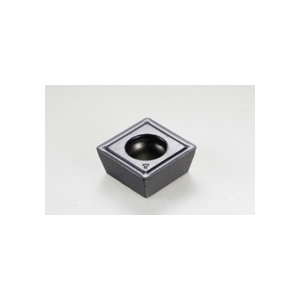

Iscar 5505240 DR-TWIST INDEXABLE DRILL LINE Milling Insert, SOMT Insert, 09T306 Insert, Carbide, Manufacturers Grade: IC908, Squared Shape, Material Grade: C1, C2, C6, C7, H, K, M, P, S

Invoice description: Iscar Dual Drill Insert Somt09t306 Dt Grade

UNSPSC: 23242107
Manufacturer PN: 5505240
$21.14 EA
In stock (4)
QTY:

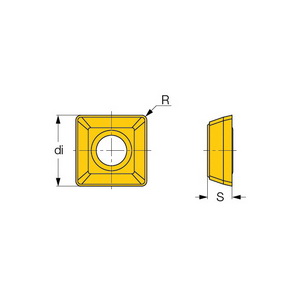

Iscar Milling Insert, Series: DR-TWIST INDEXABLE DRILL LINE, SOMT Insert, 09T306 Insert, Squared, 9 mm Inscribed Circle, 3.81 mm Thickness, 9 mm Width, 9 mm Length, DT Chipbreaker, 0.6 mm Corner Radius, Manufacturers Grade: IC908, ISO Code: SOMT 09T306-DT IC908, Carbide, PVD-TiAlN Coated, Material Grade: C1, C2, C6, C7, H, K, M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron Material Application

Specifications

ApplicationDrilling Applications
ChipbreakerDT
Corner Radius0.6 mm
FinishPVD-TiAlN Coated
Inscribed Circle9 mm
Insert Size09T306
Insert StyleSOMT
ISO CodeSOMT 09T306-DT IC908
Length9 mm
Manufacturers GradeIC908
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron
Material GradeC1, C2, C6, C7, H, K, M, P, S
SeriesDR-TWIST INDEXABLE DRILL LINE
ShapeSquared
Thickness3.81 mm
Width9 mm

Additional Information

Country of OriginIS
