Iscar ISCAR 5601157

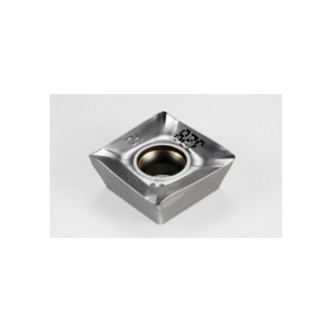

Iscar 5601157 HELIQUAD Single Sided Milling Insert With 4 Helical Cutting Edges, SDMT Insert, 1606 Insert, Carbide, Manufacturers Grade: IC328, Squared Shape, Material Grade: M, P, S
Invoice description:
Sdmt 1606pdr-hq Ic328
Factory Order
Iscar Milling Insert, Single Sided, Series: HELIQUAD, SDMT Insert, 1606 Insert, Squared Shape, 16.4 mm Inscribed Circle, 6.5 mm Thickness, 16.4 mm Width, 16.4 mm Length, HQ Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: SDMT 1606PDR-HQ IC328, Right Hand of Insert, Carbide, PVD-TiCN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application
Specifications
ApplicationCountersinking, Facing, Shouldering, Slotting, Plunging and Recessing
ChipbreakerHQ
Corner Radius0.8 mm
FinishPVD-TiCN Coated
Hand of InsertRight
Inscribed Circle16.4 mm
Insert Size1606
Insert StyleSDMT
ISO CodeSDMT 1606PDR-HQ IC328
Length16.4 mm
Manufacturers GradeIC328
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesHELIQUAD
ShapeSquared
Thickness6.5 mm
TypeSingle Sided
Width16.4 mm
Additional Information
Country of OriginIL
