Iscar ISCAR 5601637

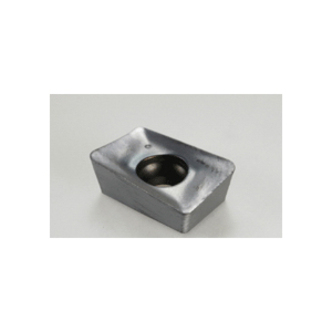

Iscar 5601637 HELIMILL Milling Insert With Helical Cutting Edge, APKT Insert, 100312 Insert, Carbide, Manufacturers Grade: IC328, 85 deg Parallelogram Shape, Material Grade: C2, C3, C5, C6, P, M, S
Invoice description:
Apkt 100312tr-rm Ic328
Factory Order

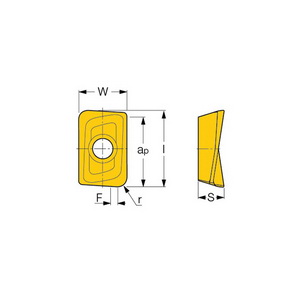

Iscar Milling Insert, Series: HELIMILL, APKT Insert, 100312 Insert, 85 deg Parallelogram, 3.47 mm Thickness, 6.7 mm Width, 10.5 mm Length, RM Chipbreaker, 1.2 mm Corner Radius, 11 deg Lead Angle, Manufacturers Grade: IC328, ISO Code: APKT 100312TR-RM IC328, Right Hand, Carbide, PVD-TiCN Coated, Material Grade: C2, C3, C5, C6, P, M, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application
Specifications
ApplicationCountersinking, Drill Mill, Facing, Rampdown, Shouldering, Slotting, Plunging and Recessing, Slanted Shoulder and Chamfer
ChipbreakerRM
Corner Radius1.2 mm
FinishPVD-TiCN Coated
Hand of InsertRight
Insert Size100312
Insert StyleAPKT
ISO CodeAPKT 100312TR-RM IC328
Lead Angle11 deg
Length10.5 mm
Manufacturers GradeIC328
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeC2, C3, C5, C6, P, M, S
SeriesHELIMILL
Shape85 deg Parallelogram
Thickness3.47 mm
Width6.7 mm
Additional Information
Country of OriginIS
