Iscar ISCAR 5601832

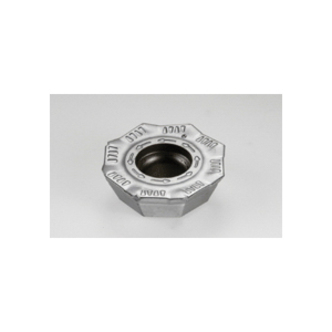

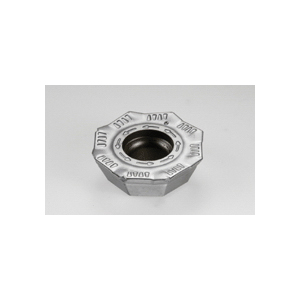

Iscar 5601832 HELIOCTO Milling Insert, OEMT Insert, 060405 Insert, Carbide, Manufacturers Grade: IC328, Octagon Shape, Material Grade: C2, C3, C5, C6, P, M, S
Invoice description:
Oemt 060405aer-76 Ic328
Factory Order

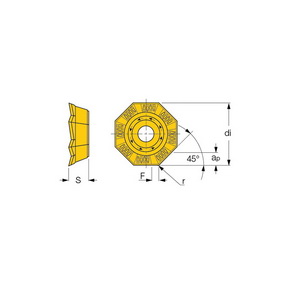

Iscar Milling Insert, Series: HELIOCTO, OEMT Insert, 060405 Insert, Octagon Shape, 14.27 mm Inscribed Circle, 4.74 mm Thickness, 2.48 mm Length, 76 Chipbreaker, 0.5 mm Corner Radius, 20 deg Lead Angle, Manufacturers Grade: IC328, ISO Code: OEMT 060405AER-76 IC328, Right Hand of Insert, Carbide, PVD-TiCN Coated, Material Grade: C2, C3, C5, C6, P, M, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application
Specifications
ApplicationFacing, Slanted Shoulder and Chamfer
Chipbreaker76
Corner Radius0.5 mm
FinishPVD-TiCN Coated
Hand of InsertRight
Inscribed Circle14.27 mm
Insert Size060405
Insert StyleOEMT
ISO CodeOEMT 060405AER-76 IC328
Lead Angle20 deg
Length2.48 mm
Manufacturers GradeIC328
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeC2, C3, C5, C6, P, M, S
SeriesHELIOCTO
ShapeOctagon
Thickness4.74 mm
Additional Information
Country of OriginIS
