Iscar ISCAR 5601896

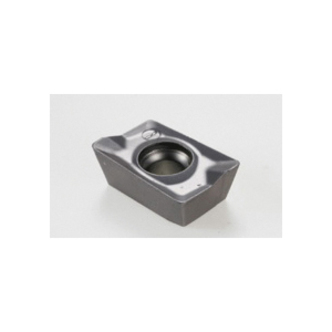

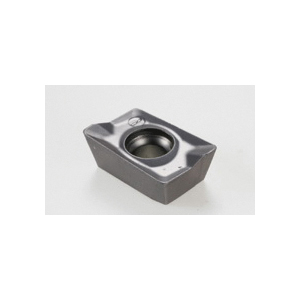

Iscar 5601896 HELIMILL Single Sided Milling Insert With 2 Helical Cutting Edges, ADKT Insert, 1505 Insert, Carbide, Manufacturers Grade: IC950, 85 deg Parallelogram Shape, Material Grade: K, P
Invoice description:
Adkt 1505pdr-hm Ic950
Factory Order
Iscar Milling Insert, Single Sided, Series: HELIMILL, ADKT Insert, 1505 Insert, 85 deg Parallelogram Shape, 9.52 mm Inscribed Circle, 5.64 mm Thickness, 9.57 mm Width, 15.65 mm Length, HM Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC950, ISO Code: ADKT 1505PDR-HM IC950, Right Hand of Insert, Carbide, PVD Coated, Material Grade: K, P, Steel, Stainless Steel Ferritic and Martensitic and Cast Iron Material Application
Specifications
ApplicationT-Slotting, Bottom Shouldering, Counterboring, Countersinking, Drill Mill, Facing, Rampdown, Plunging and Recessing
ChipbreakerHM
Corner Radius0.8 mm
FinishPVD Coated
Hand of InsertRight
Inscribed Circle9.52 mm
Insert Size1505
Insert StyleADKT
ISO CodeADKT 1505PDR-HM IC950
Length15.65 mm
Manufacturers GradeIC950
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic and Cast Iron
Material GradeK, P
SeriesHELIMILL
Shape85 deg Parallelogram
Thickness5.64 mm
TypeSingle Sided
Width9.57 mm
Additional Information
Country of OriginIL
