Iscar ISCAR 5601939

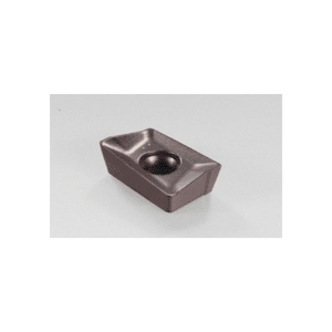

Iscar 5601939 HELIMILL Single Sided Milling Insert With 2 Helical Cutting Edges, APKT Insert, 1003 Insert, Carbide, Manufacturers Grade: IC950, 85 deg Parallelogram Shape, Material Grade: K, P
Invoice description:
Apkt 1003pdr-hm Ic950
Factory Order

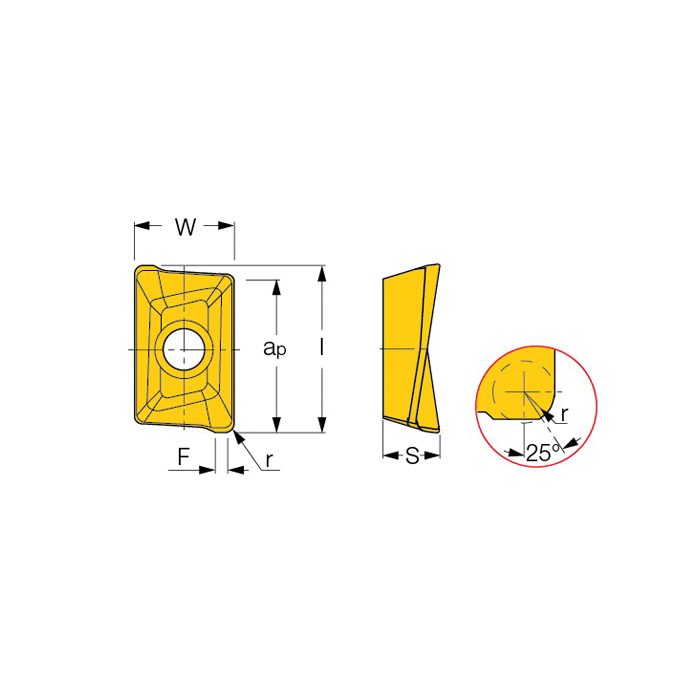

Iscar Milling Insert, Single Sided, Series: HELIMILL, APKT Insert, 1003 Insert, 85 deg Parallelogram Shape, 6.68 mm Inscribed Circle, 3.55 mm Thickness, 6.7 mm Width, 10.95 mm Length, HM Chipbreaker, 0.5 mm Corner Radius, Manufacturers Grade: IC950, ISO Code: APKT 1003PDR-HM IC950, Right Hand of Insert, Carbide, PVD Coated, Material Grade: K, P, Steel, Stainless Steel Ferritic and Martensitic and Cast Iron Material Application
Specifications
ApplicationCountersinking, Drill Mill, Facing, Rampdown, Shouldering, Slotting, Plunging and Recessing, Slanted Shoulder and Chamfer
ChipbreakerHM
Corner Radius0.5 mm
FinishPVD Coated
Hand of InsertRight
Inscribed Circle6.68 mm
Insert Size1003
Insert StyleAPKT
ISO CodeAPKT 1003PDR-HM IC950
Length10.95 mm
Manufacturers GradeIC950
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic and Cast Iron
Material GradeK, P
SeriesHELIMILL
Shape85 deg Parallelogram
Thickness3.55 mm
TypeSingle Sided
Width6.7 mm
Additional Information
Country of OriginIL
