Iscar ISCAR 5602494

Iscar 5602494 HELI2000 Milling Insert, APKT Insert, 1003 Insert, Carbide, Manufacturers Grade: IC908, 85 deg Parallelogram Shape, Material Grade: H, K, M, P, S

Invoice description: Hm90 Apkt 1003pdr Ic908

UNSPSC: 23242107

Manufacturer PN: 5602494

^$24.97 EA

Factory Order
Estimated to ship in 14 days

enlarge

Product Overview

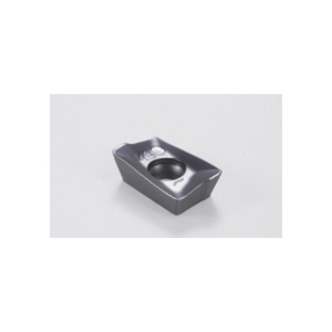

Iscar Milling Insert, Series: HELI2000, APKT Insert, 1003 Insert, 85 deg Parallelogram Shape, 3.53 mm Thickness, 6.76 mm Width, 11.45 mm Length, 0.8 mm Corner Radius, 11 deg Lead Angle, Manufacturers Grade: IC908, ISO Code: HM90 APKT 1003PDR IC908, Right Hand of Insert, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron Material Application

Specifications

ApplicationCounterboring, Countersinking, Profiling, Rampdown, Shouldering, Slotting, Slanted Shoulder and Chamfer

Corner Radius0.8 mm

FinishPVD-TiAlN Coated

Hand of InsertRight

Insert Size1003

Insert StyleAPKT

ISO CodeHM90 APKT 1003PDR IC908

Lead Angle11 deg

Length11.45 mm

Manufacturers GradeIC908

MaterialCarbide

Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron

Material GradeH, K, M, P, S

SeriesHELI2000

Shape85 deg Parallelogram

Thickness3.53 mm

Width6.76 mm
