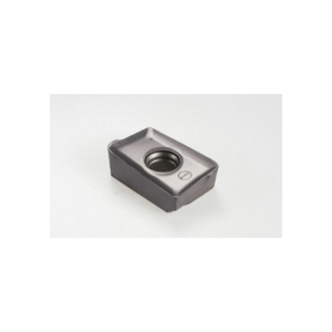

Iscar ISCAR 5602953
Iscar 5602953 MILL2000 Single Sided Heavy Duty Milling Insert, AXKT Insert, 200624 Insert, Carbide, Manufacturers Grade: IC928, 85 deg Parallelogram Shape, Material Grade: M, P, S
Invoice description:
3m Axkt 200624r-pdr Ic92 8
Factory Order
Iscar Milling Insert, Single Sided Heavy Duty, Series: MILL2000, AXKT Insert, 200624 Insert, 85 deg Parallelogram Shape, 6.55 mm Thickness, 13.5 mm Width, 22 mm Length, PDR Chipbreaker, 2.4 mm Corner Radius, Positive Rake, Manufacturers Grade: IC928, ISO Code: 3M AXKT 200624R-PDR IC928, Right Hand of Insert, Carbide, PVD-TiAlN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application
Features
- Heavy duty design, dovetail section shape, helical cutting edge
- Enable a secure clamping and high durability in rough applications
Specifications
ApplicationCounterboring, Facing, Slanted Shoulder and Chamfer
ChipbreakerPDR
Corner Radius2.4 mm
FinishPVD-TiAlN Coated
Hand of InsertRight
Insert Size200624
Insert StyleAXKT
ISO Code3M AXKT 200624R-PDR IC928
Length22 mm
Manufacturers GradeIC928
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
RakePositive
SeriesMILL2000
Shape85 deg Parallelogram
Thickness6.55 mm
TypeSingle Sided Heavy Duty
Width13.5 mm
Additional Information
Country of OriginIL
