Iscar ISCAR 5604221

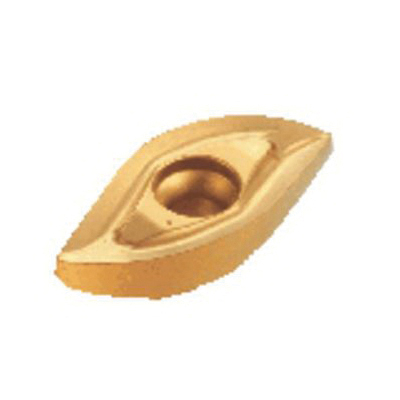

Iscar 5604221 DROPMILL Milling Insert, BCR Insert, 1 Insert, Carbide, Manufacturers Grade: IC908, 82 deg Parallelogram Shape, Material Grade: H, K, M, P, S
Invoice description:
Bcr D1.00-qt Ic908
Factory Order
Iscar Milling Insert, BCR Insert, 1 Insert, 82 deg Parallelogram, 0.23 in Thickness, 0.47 in Width, 0.87 in Length, QT Chipbreaker, 1/2 in Corner Radius, Manufacturers Grade: IC908, ISO Code: BCR D1.00-QT IC908, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron Material Application
Features
- The DROPMILL insert has a straight cutting edge tangent to a round corner
- It enables machining of a shoulder with a round corner
- Designed with a cylinder on bottom that is seated in a mating hole in the pocket
Specifications
ApplicationDrill Mill, Helical Interpolation, Profiling, Rampdown, Plunging and Recessing
ChipbreakerQT
Corner Radius1/2 in
FinishPVD-TiAlN Coated
Insert Size1
Insert StyleBCR
ISO CodeBCR D1.00-QT IC908
Length0.87 in
Manufacturers GradeIC908
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron
Material GradeH, K, M, P, S
SeriesDROPMILL
Shape82 deg Parallelogram
Thickness0.23 in
Width0.47 in
Additional Information
Country of OriginIL
