Iscar ISCAR 5606904

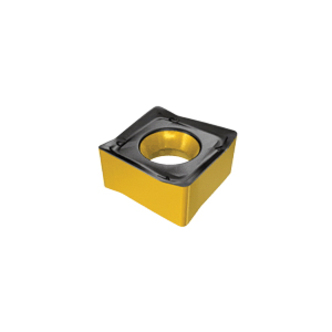

Iscar 5606904 HELIDO 890 LINE Double Sided Milling Insert With 8 Cutting Edges, SNMU Insert, 1305 Insert, Carbide, Manufacturers Grade: IC808, Squared Shape, Material Grade: H, K, M, P, S
Invoice description:
S890 Snmu 1305pntr Ic808
Factory Order
Iscar Milling Insert, Double Sided, Series: HELIDO 890 LINE, SNMU Insert, 1305 Insert, Squared Shape, 13 mm Inscribed Circle, 5.6 mm Thickness, 13 mm Width, 13 mm Length, PNTR Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC808, ISO Code: S890 SNMU 1305PNTR IC808, Right Hand of Insert, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: H, K, M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron Material Application
Specifications
ApplicationFacing and Shouldering
ChipbreakerPNTR
Corner Radius0.8 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
Hand of InsertRight
Inscribed Circle13 mm
Insert Size1305
Insert StyleSNMU
ISO CodeS890 SNMU 1305PNTR IC808
Length13 mm
Manufacturers GradeIC808
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron
Material GradeH, K, M, P, S
SeriesHELIDO 890 LINE
ShapeSquared
Thickness5.6 mm
TypeDouble Sided
Width13 mm
Additional Information
Country of OriginIL
