Iscar ISCAR 5623416

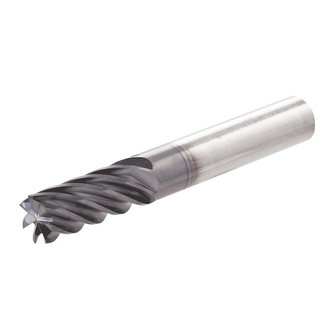

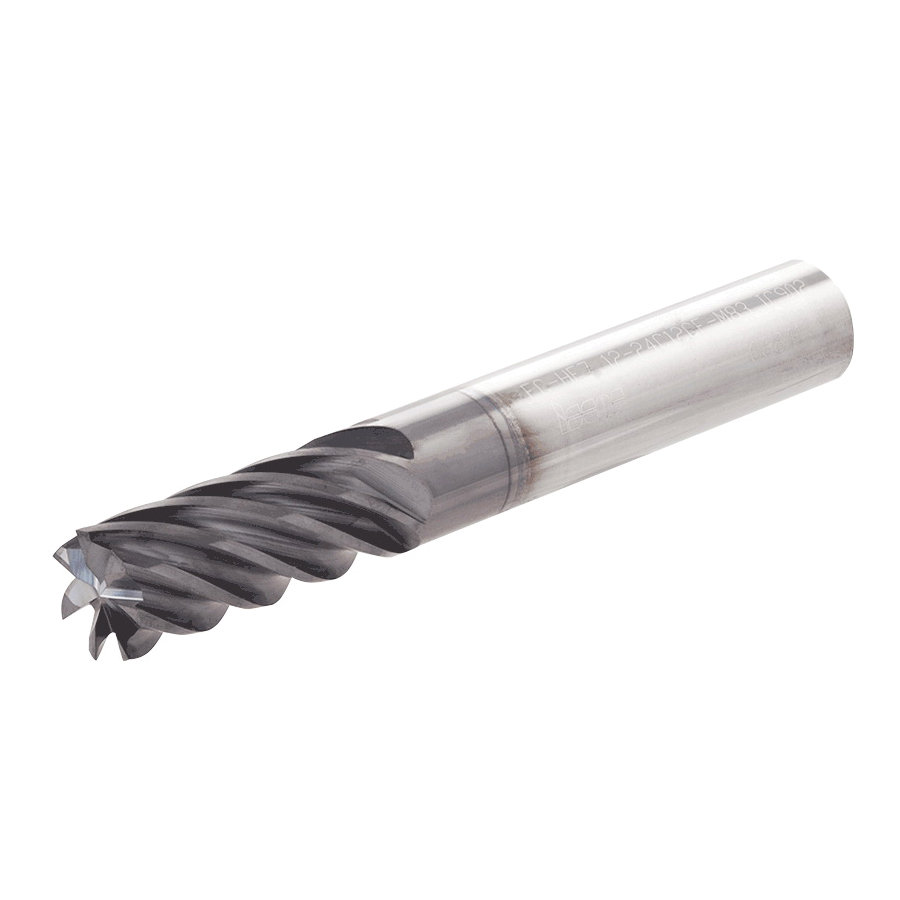

Iscar 5623416 SOLIDMILL CHATTERFREE SAFE-LOCK Square End Mill, 3/4 in Dia Cutter, 1-1/2 in Length of Cut, 7 Flutes, 3/4 in Dia Shank, 5 in OAL, PVD-TiAlN Coated
Invoice description:
Eci-h7 750-1.50c750cf-5 A End Mill Finisher, 7-f
Factory Order
Iscar Square End Mill, Series: SOLIDMILL CHATTERFREE SAFE-LOCK, 3/4 in Cutter Dia, 5 in Overall Length, 1-1/2 in Length of Cut, 7 Flutes, Spiral Flute, 3/4 in Shank Dia, Right Hand Cutting, 37 deg Helix Angle, Cylindrical Shank, ANSI Code: ECI-H7 750-1.50C750CF-5, ISO Code: ECI-E7/H7-CF, Submicron Grain Solid Carbide, PVD-TiAlN Coated
Features
- 7-flute end mills with different helix and variable pitch, for CHATTERFREE high speed/trochoidal milling and finishing operations
- Can machine at radial width of cut of up to 0.1XD
Specifications
ApplicationMilling and Shouldering
ANSI CodeECI-H7 750-1.50C750CF-5
Cutter Diameter3/4 in
Cutting DirectionRight Hand
FinishPVD-TiAlN Coated
Flute TypeSpiral
Helix Angle37 deg
ISO CodeECI-E7/H7-CF
Length of Cut1-1/2 in
MaterialSubmicron Grain Solid Carbide
Number of Flutes7
Overall Length5 in
SeriesSOLIDMILL CHATTERFREE SAFE-LOCK
Shank Diameter3/4 in
Shank TypeCylindrical
Additional Information
Standards/ApprovalISO 13399
