Iscar ISCAR 5650174

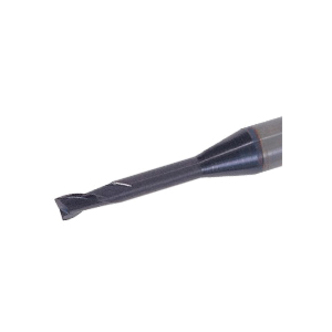

Iscar 5650174 SOLIDMILL Single End Square End Mill, 0.8 mm Dia Cutter, 4 mm Length of Cut, 2 Flutes, 4 mm Dia Shank, 45 mm OAL, PVD-TiAlN Coated
Invoice description:
Ec-a2 008-012/04c4m45 90 3 0.8mm 2fl End Mill
Factory Order
Iscar Square End Mill, Single End, Series: SOLIDMILL, 0.8 mm Cutter Dia, 45 mm Overall Length, 4 mm Length of Cut, 2 Flutes, Spiral Flute, 4 mm Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: EC-A2 008-012/04C4M45, ISO Code: EC-A2-M, Submicron Grain Solid Carbide, PVD-TiAlN Coated
Features
- 2-flute, 30 deg helix solid carbide end mills for rib processing on hard materials up to 55 HRC
Specifications
ApplicationMilling
ANSI CodeEC-A2 008-012/04C4M45
Cutter Diameter0.8 mm
Cutting DirectionRight Hand
FinishPVD-TiAlN Coated
Flute TypeSpiral
Helix Angle30 deg
ISO CodeEC-A2-M
Length of Cut4 mm
MaterialSubmicron Grain Solid Carbide
Number of Flutes2
Overall Length45 mm
SeriesSOLIDMILL
Shank Diameter4 mm
Shank TypeCylindrical
TypeSingle End
Additional Information
Standards/ApprovalISO 13399
