Iscar ISCAR 5667159

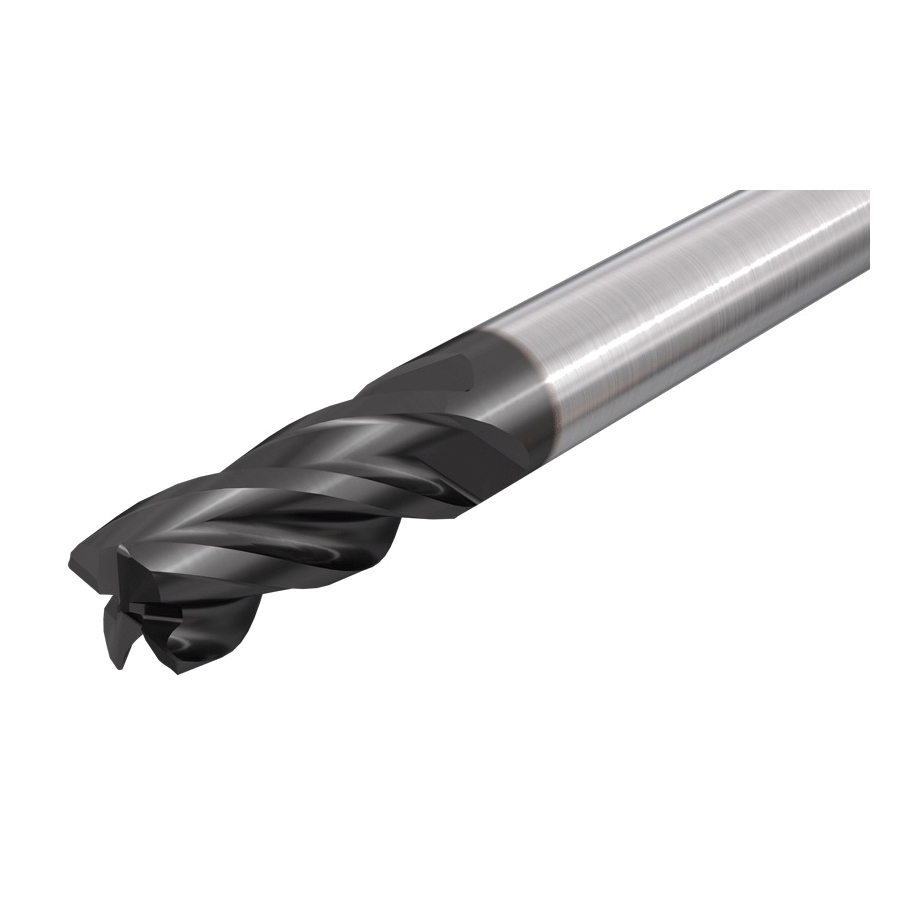

Iscar 5667159 SOLIDMILL CHATTERFREE SAFE-LOCK TI-TURBO Square End Mill, 6 mm Dia Cutter, 2XD Length of Cut, 4 Flutes, 6 mm Dia Shank, 57 mm OAL, PVD-TiAlN Coated
Invoice description:
Eck-h4m 06-12c06cfr0.2-5 7 6mm X 12mm X 57mm Ti-t
Factory Order
Iscar Square End Mill, Series: SOLIDMILL CHATTERFREE SAFE-LOCK TI-TURBO, 6 mm Diameter Cutter, 57 mm Overall Length, 2XD Length of Cut, 4 Flutes, Spiral Flute, 6 mm Shank Diameter, Right Hand Cutting Direction, 35/37 deg Helix Angle, Cylindrical/Weldon Shank, ANSI Code: ECK-H4M 06-12C06CFR0.2-57, ISO Code: ECK-H4M-CFR, Submicron Grain Solid Carbide, PVD-TiAlN Coated
Features
- 4-flute end mills with different helix (35 deg and 37 deg), chamfered cutting edges and variable pitch for chatter dampening with assorted radii
- Used for high titanium removal rates
- Full slot milling - up to 2XD
Specifications
ApplicationMilling
ANSI CodeECK-H4M 06-12C06CFR0.2-57
Cutter Diameter6 mm
Cutting DirectionRight Hand
FinishPVD-TiAlN Coated
Flute TypeSpiral
Helix Angle35/37 deg
ISO CodeECK-H4M-CFR
Length of Cut2XD
MaterialSubmicron Grain Solid Carbide
Number of Flutes4
Overall Length57 mm
SeriesSOLIDMILL CHATTERFREE SAFE-LOCK TI-TURBO
Shank Diameter6 mm
Shank TypeCylindrical/Weldon
Additional Information
Standards/ApprovalISO 13399
