Iscar ISCAR 5696065

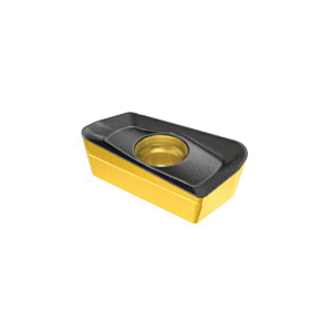

Iscar 5696065 HELIPLUS Single Sided Milling Insert With 7.7 mm Helical Edge, ANCT Insert, 070202 Insert, Carbide, Manufacturers Grade: IC910, 85 deg Parallelogram Shape, Material Grade: K, P
Invoice description:
Hp Anct 070202 Pn-r Ic91
Factory Order

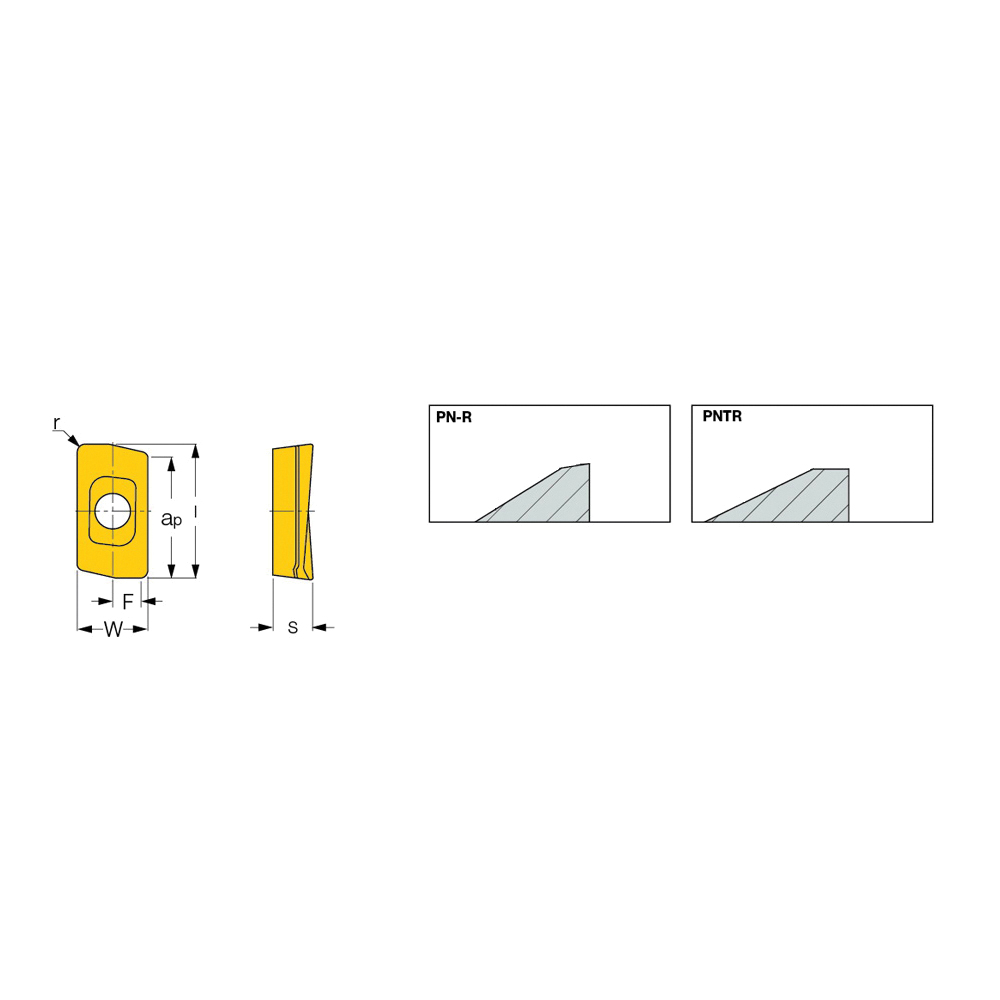

Iscar Milling Insert, Single Sided, Series: HELIPLUS, ANCT Insert, 070202 Insert, 85 deg Parallelogram Shape, 2.6 mm Thickness, 4.5 mm Width, 8.7 mm Length, PN Chipbreaker, 0.2 mm Corner Radius, Manufacturers Grade: IC910, ISO Code: HP ANCT 070202 PN- IC910, Right Hand of Insert, Carbide, PVD-AlTiN Coated, Material Grade: K, P, Steel, Stainless Steel Ferritic and Martensitic and Cast Iron Material Application
Specifications
ApplicationCounterboring, Facing, Rampdown, Shouldering, Slotting, Slanted Shoulder and Chamfer
ChipbreakerPN
Corner Radius0.2 mm
FinishPVD-AlTiN Coated
Hand of InsertRight
Insert Size070202
Insert StyleANCT
ISO CodeHP ANCT 070202 PN- IC910
Length8.7 mm
Manufacturers GradeIC910
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic and Cast Iron
Material GradeK, P
SeriesHELIPLUS
Shape85 deg Parallelogram
Thickness2.6 mm
TypeSingle Sided
Width4.5 mm
Additional Information
Country of OriginIL
