Iscar ISCAR 6200129

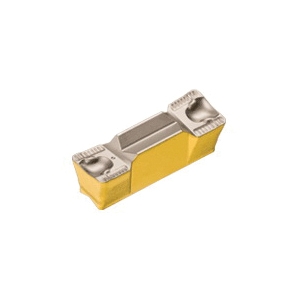

Iscar 6200129 HELI-GRIP Y-Type Double End Twisted Utility Grooving Insert, Rectangle Shape, GRIP Insert, 5008 Insert, Neutral Cutting, 5 mm W Cutting, Manufacturers Grade: IC908, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
UNSPSC:
23242107
Manufacturer PN: 6200129
$44.56 EA
Factory OrderEstimated to ship in 14 days
This item has been discontinued.

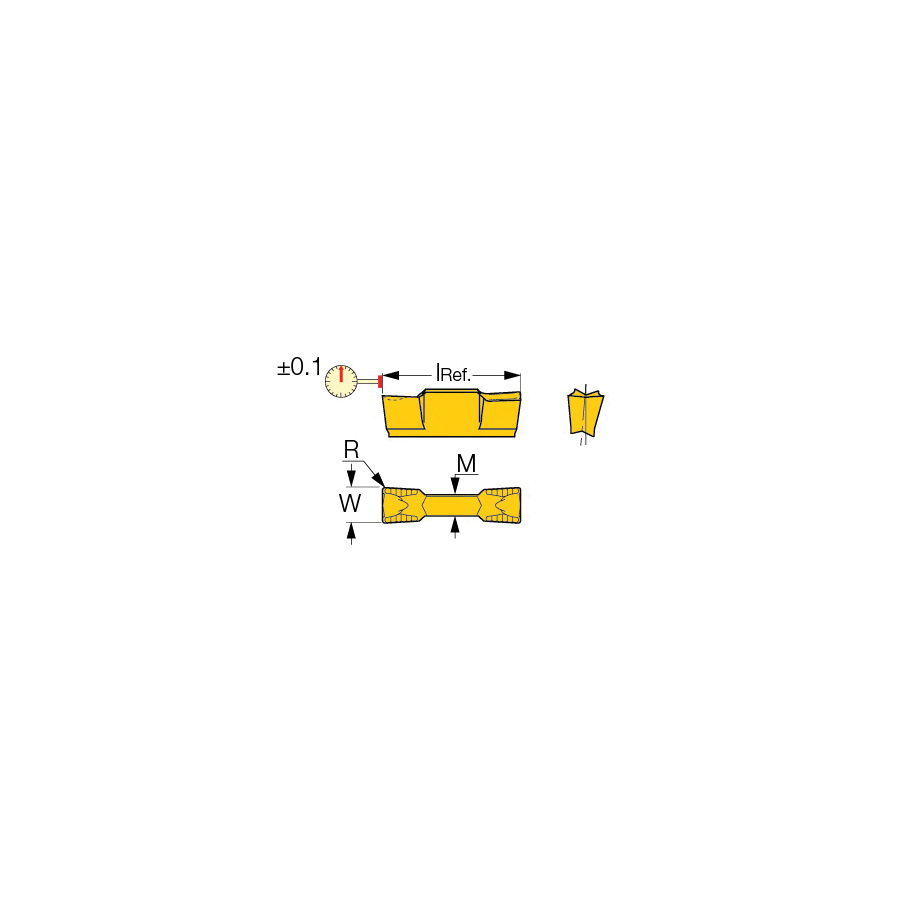

Iscar Grooving Insert, Y-Type Double End Twisted Utility, Series: HELI-GRIP, GRIP Insert, 5008 Insert, Rectangle Shape, 5 mm Cutting Width, 3 mm Maximum Depth of Cut, 0 deg Lead Angle, Y Chipbreaker, 0.8 mm Corner Radius, 5 mm Width, 19 mm Length, Manufacturers Grade: IC908, ISO Code: GRIP 5008Y IC908, Neutral Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Specifications

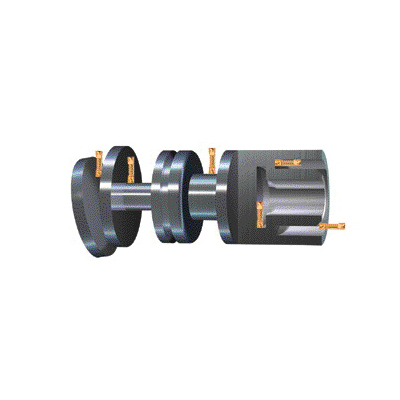

ApplicationExternal, Internal Grooving and Turning, Face Grooving and Turning, Face Grooving Along Shaft, Internal Face Grooving and Turning
ChipbreakerY
Corner Radius0.8 mm
Cutting DirectionNeutral
Cutting Width5 mm
FinishPVD-TiAlN Coated
Insert Size5008
Insert StyleGRIP
ISO CodeGRIP 5008Y IC908
Lead Angle0 deg
Length19 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut3 mm
SeriesHELI-GRIP
ShapeRectangle
TypeY-Type Double End Twisted Utility
Width5 mm
