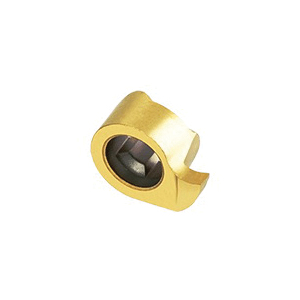

Iscar ISCAR 6402477
Iscar 6402477 CHAMGROOVE Internal Precision Ground Grooving Insert, Special Shape, GIQR Insert, 8120005 Insert, Right Hand Cutting, 1.2 mm W Cutting, Manufacturers Grade: IC528, PVD- TiCN+TiN Coated, Material Grade: M, P, S
Invoice description:
.047 Wide Giqr81200005 Ic528 Id Groove Inse
Factory Order
Iscar Grooving Insert, Internal Precision Ground, Series: CHAMGROOVE, GIQR Insert, 8120005 Insert, Special, 1.2 mm Cutting Width, 1.5 mm Maximum Depth of Cut, 0.05 mm Corner Radius, 1.2 mm Width, 7.78 mm Length, Manufacturers Grade: IC528, ISO Code: GIQR 8-1.20-0.05 IC528, Right Hand Cutting, Carbide, PVD- TiCN+TiN Coated, Material Grade: M, P, S
Specifications
ApplicationExternal/Internal Grooving, Turning and Parting
Corner Radius0.05 mm
Cutting DirectionRight Hand
Cutting Width1.2 mm
FinishPVD- TiCN+TiN Coated
Insert Size8120005
Insert StyleGIQR
ISO CodeGIQR 8-1.20-0.05 IC528
Length7.78 mm
Manufacturers GradeIC528
MaterialCarbide
Material GradeM, P, S
Maximum Depth of Cut1.5 mm
SeriesCHAMGROOVE
ShapeSpecial
TypeInternal Precision Ground
Width1.2 mm
Additional Information
Country of OriginIL
