Iscar ISCAR 6200180

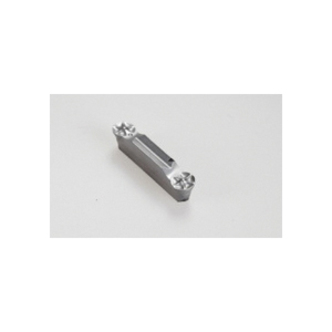

Iscar 6200180 HELI-GRIP Double End Full Radius Utility Grooving Insert, Rectangle Shape, GRIP Insert, 318159 Insert, Neutral Cutting, 3.18 mm W Cutting, Manufacturers Grade: IC908, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Invoice description:
Grip 318-159y Ic908
Factory Order
Iscar Grooving Insert, Double End Full Radius Utility, Series: HELI-GRIP, GRIP Insert, 318159 Insert, Rectangle Shape, 3.18 mm Cutting Width, 1.5 mm Maximum Depth of Cut, 0 deg Lead Angle, Y Chipbreaker, 1.59 mm Corner Radius, 3.18 mm Width, 16 mm Length, Manufacturers Grade: IC908, ISO Code: GRIP 318-159Y IC908, Neutral Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Specifications
ApplicationExternal/Internal Grooving and Turning, Face Grooving and Turing and Parting
ChipbreakerY
Corner Radius1.59 mm
Cutting DirectionNeutral
Cutting Width3.18 mm
FinishPVD-TiAlN Coated
Insert Size318159
Insert StyleGRIP
ISO CodeGRIP 318-159Y IC908
Lead Angle0 deg
Length16 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut1.5 mm
SeriesHELI-GRIP
ShapeRectangle
TypeDouble End Full Radius Utility
Width3.18 mm
Additional Information
Country of OriginIL
