Iscar ISCAR 6402496

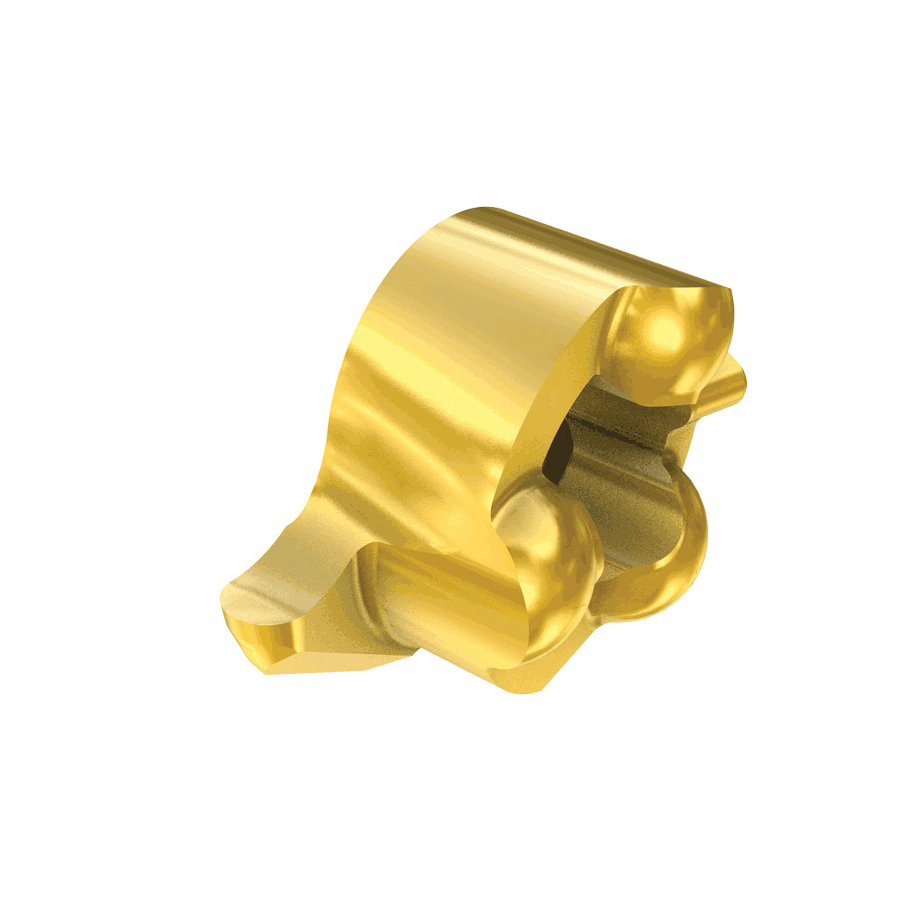

Iscar 6402496 CHAMGROOVE Internal Precision Ground Single End Grooving Insert, Special Shape, GIQL Insert, 8120060 Insert, Left Hand Cutting, 1.2 mm W Cutting, Manufacturers Grade: IC528, PVD- TiCN+TiN Coated, Material Grade: M, P, S
UNSPSC:
23242107
Manufacturer PN: 6402496
$38.58 EA
Factory OrderEstimated to ship in 14 days
This item has been discontinued.

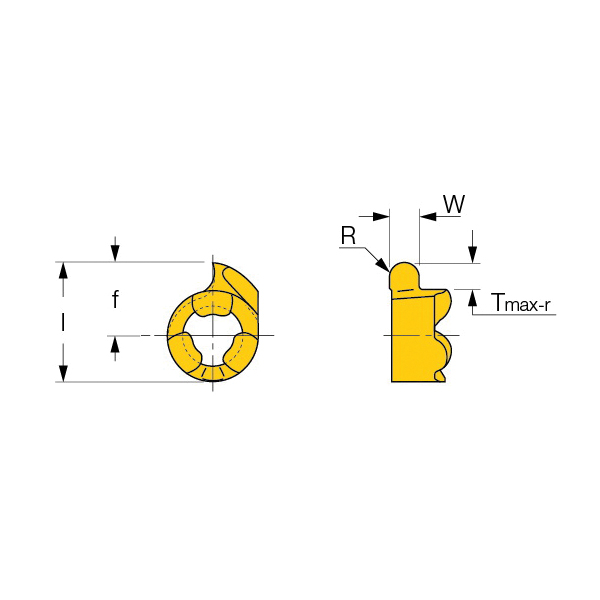

Iscar Grooving Insert, Internal Precision Ground Single End, Series: CHAMGROOVE, GIQL Insert, 8120060 Insert, Special, 1.2 mm Cutting Width, 0.6 mm Maximum Depth of Cut, 0.6 mm Corner Radius, 1.2 mm Width, 7.78 mm Length, Manufacturers Grade: IC528, ISO Code: GIQL 8-1.20-R060 IC528, Left Hand Cutting, Carbide, PVD- TiCN+TiN Coated, Material Grade: M, P, S
Specifications
ApplicationExternal/Internal Grooving, Profiling and Parting
Corner Radius0.6 mm
Cutting DirectionLeft Hand
Cutting Width1.2 mm
FinishPVD- TiCN+TiN Coated
Insert Size8120060
Insert StyleGIQL
ISO CodeGIQL 8-1.20-R060 IC528
Length7.78 mm
Manufacturers GradeIC528
MaterialCarbide
Material GradeM, P, S
Maximum Depth of Cut0.6 mm
SeriesCHAMGROOVE
ShapeSpecial
TypeInternal Precision Ground Single End
Width1.2 mm
