Iscar ISCAR 6403396

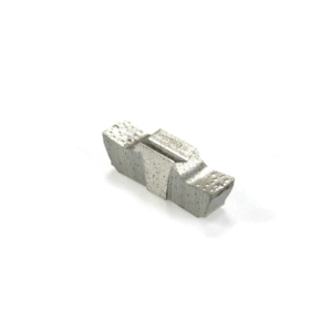

Iscar 6403396 CUT-GRIP Double End Precision Ground Grooving Insert, Rectangle Shape, GEPI Insert, 239015 Insert, Neutral Cutting, 2.39 mm W Cutting, Manufacturers Grade: IC08, Uncoated, Material Grade: N
Invoice description:
Gepi 2.39-0.15 Ic08
Factory Order
Iscar Grooving Insert, Double End Precision Ground, Series: CUT-GRIP, GEPI Insert, 239015 Insert, Rectangle Shape, 2.39 mm Cutting Width, 1 mm Maximum Depth of Cut, 0.15 mm Corner Radius, 2.39 mm Width, 10 mm Length, Manufacturers Grade: IC08, ISO Code: GEPI 2.39-0.15 IC08, Neutral Cutting Direction, Carbide, Uncoated, Material Grade: N
Features
- For internal and external grooving at low feeds in diameters from 11.5 mm
Specifications
ApplicationExternal Grooving and Parting
Corner Radius0.15 mm
Cutting DirectionNeutral
Cutting Width2.39 mm
FinishUncoated
Insert Size239015
Insert StyleGEPI
ISO CodeGEPI 2.39-0.15 IC08
Length10 mm
Manufacturers GradeIC08
MaterialCarbide
Material GradeN
Maximum Depth of Cut1 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End Precision Ground
Width2.39 mm
Additional Information
Country of OriginIL
