Iscar ISCAR 6403581

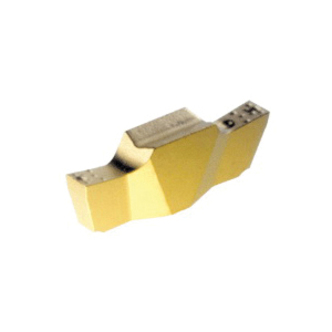

Iscar 6403581 CUT-GRIP Double End Precision Ground Grooving Insert, Rectangle Shape, GEPI Insert, 080000 Insert, Right Hand Cutting, 0.8 mm W Cutting, Manufacturers Grade: IC908, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Invoice description:
Gepi 0.80-0.00rx Ic908
Factory Order

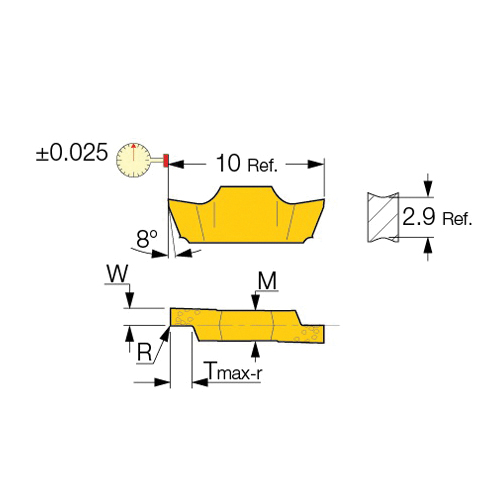

Iscar Grooving Insert, Double End Precision Ground, Series: CUT-GRIP, GEPI Insert, 080000 Insert, Rectangle Shape, 0.8 mm Cutting Width, 0.059 mm Maximum Depth of Cut, RX Chipbreaker, 1.8 mm Width, 10 mm Length, Manufacturers Grade: IC908, ISO Code: GEPI 0.80-0.00RX IC908, Right Hand Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Features
- For internal grooving next to shoulder
Specifications
ApplicationExternal Grooving and Parting
ChipbreakerRX
Cutting DirectionRight Hand
Cutting Width0.8 mm
FinishPVD-TiAlN Coated
Insert Size080000
Insert StyleGEPI
ISO CodeGEPI 0.80-0.00RX IC908
Length10 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut0.059 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End Precision Ground
Width1.8 mm
Additional Information
Country of OriginIL
