Iscar ISCAR 6404275

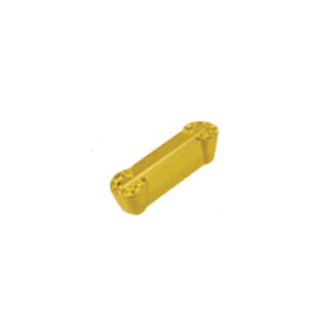

Iscar 6404275 CUT-GRIP Double End Full Radius Internal Precision Ground Utility Grooving Insert, Rectangle Shape, GDMY Insert, 840 Insert, Neutral Cutting, 8 mm W Cutting, Manufacturers Grade: IC8250, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
UNSPSC:
23242107
Manufacturer PN: 6404275
$59.46 EA
Factory Order
Estimated to ship in 14 days
Estimated to ship in 14 days
This item has been discontinued.

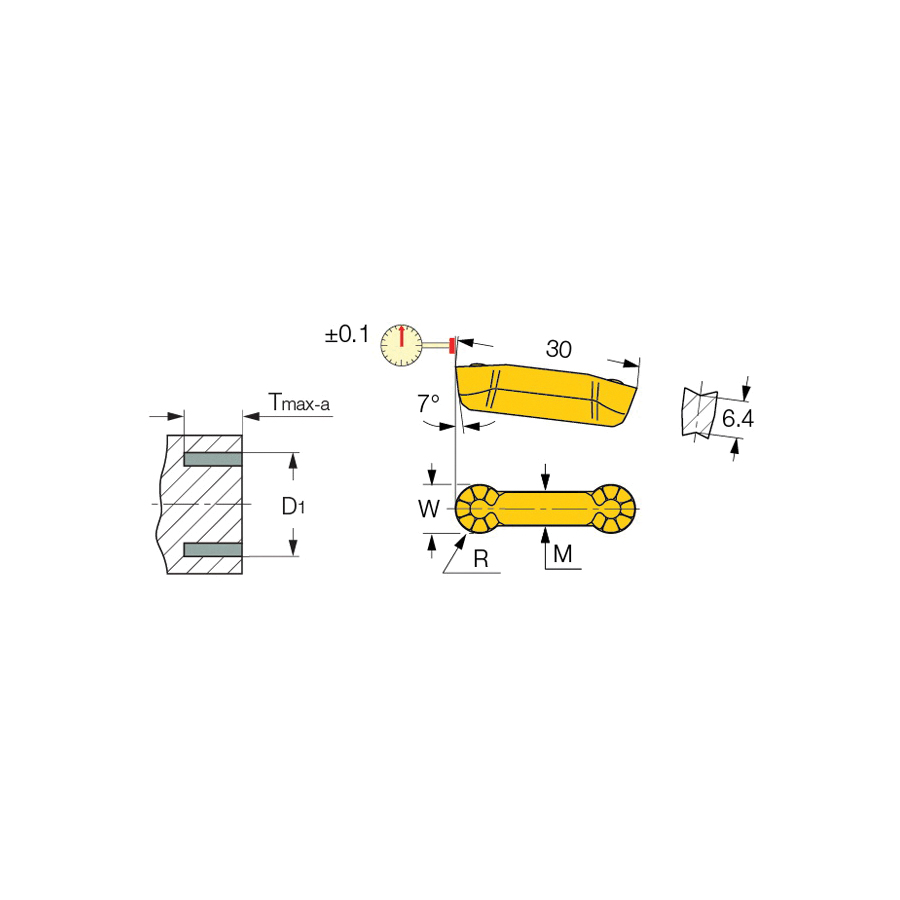

Iscar Grooving Insert, Double End Full Radius Internal Precision Ground Utility, Series: CUT-GRIP, GDMY Insert, 840 Insert, Rectangle Shape, 8 mm Cutting Width, 4 mm Maximum Depth of Cut, 4 mm Corner Radius, 8 mm Width, 30 mm Length, Manufacturers Grade: IC8250, ISO Code: GDMY 840 IC8250, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Features
- For grooving and turning at low to medium feeds
Specifications
ApplicationExternal Grooving, Parting, Heavy Duty Turning, Profiling and Grooving
Corner Radius4 mm
Cutting DirectionNeutral
Cutting Width8 mm
FinishCVD-TiCN+Al2O3+TiN Coated
Insert Size840
Insert StyleGDMY
ISO CodeGDMY 840 IC8250
Length30 mm
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut4 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End Full Radius Internal Precision Ground Utility
Width8 mm
