Midland Industries MIDM 16010

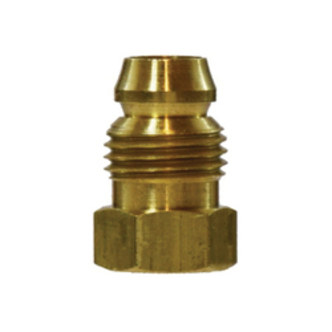

Midland Industries 16010 Break-Away Nut, 1/4 in Nominal, Compression End Style, Brass

Invoice description: Nut Brk-away 1/4in Compr Ession 0.43in Midland Industries 16010 Break-away Nut, 1/4 In Nominal, Compression End Style, Brass

UNSPSC: 40183100
Manufacturer PN: 16010
$1.86 EA
Factory Order
Estimated to ship in 14 days
QTY:


Midland Industries Break-Away Nut, Nut Fitting/Connector, 1/4 in Nominal, Compression End Style, 0.43 in Hex, 300 psi Pressure, -65 to 250 deg F, Brass, 0.62 in L Dimensions

  • Features

  • Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
  • Fair resistance use long nut when greater vibration resistance is needed
  • /-0.02 tolerance on all dimensions
  • Not recommended for steel tubing
  • 1-piece fitting

Specifications

ApplicationFor use with aluminum, copper, brass and thermoplastic tubing
Dimensions0.62 in L
End StyleCompression
Fitting/Connector TypeNut
Hex Size0.43 in
MaterialBrass
Nominal Size1/4 in
Pressure Rating300 psi
Temperature Rating-65 to 250 deg F

Additional Information

Standards/ApprovalASA|ASME and SAE
Country of OriginCN
