Midland Industries MIDM 943204

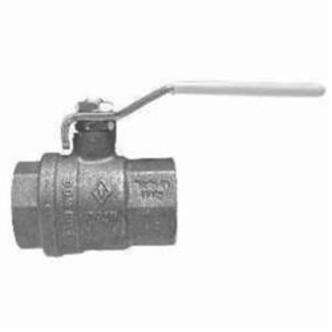

Midland Industries 943204 Ball Valve, 1 in Nominal, FNPT End Style, Forged Brass Body, Full Port, NBR 80 O-Ring Softgoods, Import
Invoice description:
Valve Ball 1in Fnpt Fgd Brs Full Midland Industries 943204 Ball Valve, 1 In Nominal, Fnpt End Style, Forged Brass Body, Full Port, Nbr 80 O-ring Softgoods, Import
Factory Order
Midland Industries Ball Valve, 1 in Nominal, FNPT, 600 psi WOG, 150 WSP, -20 to 248 deg F, Full Port, Media: Cold Water, Oil, Gas and Saturated Steam, Polished Chrome Brass Ball, Forged Brass Body, PTFE Ball Stem, Stem Antif Seat and Stem Seat Trim, NBR 80 O-Ring, 2.03 in H x 2.8 in W, Import
Features
- Suitable for full range of liquids and Gases
- Minimal pressure drop due to large full size ports
- Bottom loaded, pressure retaining stem
- Yellow vinyl insulator on heavy duty plated carbon steel handles
- Fast 1/4 turn open or close operation
- Low operating torque, flow can go both directions, generic handles
- Hard chromium plated solid ball
- Deeper threads for better connections
- Virgin TFE stem packing seal, thrust washer and seats
- Forged brass end connection, brass ring and nut, steel nut and handle
Specifications
Ball MaterialPolished Chrome Brass
Body MaterialForged Brass
Dimensions2.03 in H x 2.8 in W
Domestic/ImportImport
End StyleFNPT
MediaCold Water, Oil, Gas and Saturated Steam
Nominal Size1 in
Port TypeFull
Pressure Rating600 psi WOG, 150 WSP
Softgoods MaterialNBR 80 O-Ring
Temperature Rating-20 to 248 deg F
Trim MaterialPTFE Ball Stem, Stem Antif Seat and Stem Seat
Additional Information
Standards/ApprovalCSA AGA 3.88 5 PSIG|IAMPO IGC 157 - 2004b|UL842|UL
Country of OriginIT
