MMM MIDM 940179

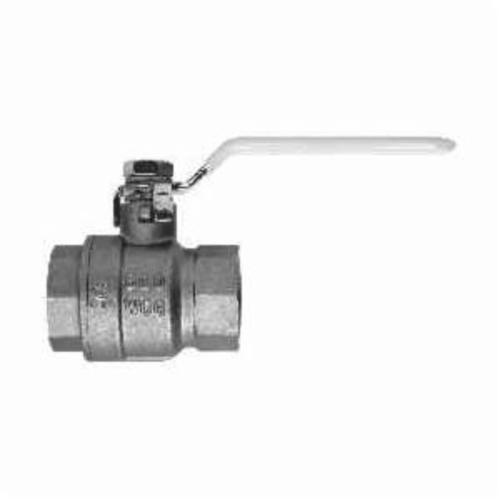

MMM 940179 Ball Valve, 2-1/2 in Nominal, FNPT End Style, Forged Brass Body, Full Port, PTFE Stem Seal Softgoods, Import

UNSPSC: 40141607
Manufacturer PN: 940179
$259.24 EA
Factory Order
Estimated to ship in 14 days
QTY:


MMM Ball Valve, 2-1/2 in Nominal, FNPT, 400 psi WOG, 150 psi WSP, -22 to 302 deg F, Full Port, Media: Cold Water, Oil, Gas and Saturated Steam, Polished Chrome Brass Ball, Forged Brass Body, Brass Stem/PTFE Ball Seat Trim, PTFE Stem Seal, 4.76 in H x 5.38 in W, Import

  • Features

  • Deeper threads for better connections
  • Suitable for full range of liquids and Gases
  • Fast 1/4 turn open or close operation
  • Yellow vinyl insulator on heavy duty plated carbon steel handles
  • Low operating torque and adjustable stem packing gland
  • Forged brass for more strength
  • Hard chromium plated solid ball
  • Minimal pressure drop due to large full size ports
  • Bottom loaded, pressure retaining stem
  • Bottom entry, blow-out proof stem

Specifications

Nominal Size 2-1/2 in
End Style FNPT
Pressure Rating 400 psi WOG, 150 psi WSP
Temperature Rating -22 to 302 deg F
Port Type Full
Media Cold Water, Oil, Gas and Saturated Steam
