Midland Industries MIDM 99825

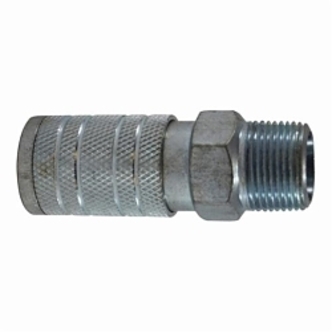

Midland Industries 99825 Industrial Interchange Pipe Coupler, 1/2 in Nominal, MNPT, Steel, Import
Invoice description:
Coupler Pipe 1/2in Mnpt 250psi Stl Midland Industries 99825 Industrial Interchange Pipe Coupler, 1/2 In Nominal, Mnpt, Steel, Domestic
Factory Order
Midland Industries Pipe Coupler, Industrial Interchange, 1/2 in Nominal, MNPT, 250 psi, -4 to 176 deg F, Steel, Import
Features
- Compact and economical design uses a ball locking mechanism consisting of 8 captive steel balls that engage the locking groove on the mating nipple
- Sliding spring loaded sleeve on the coupler must be manually retracted in order to connect or disconnect the nipple
- Easy to do, but two hands are normally required
- Widely used to connect compressed air and low pressure fluid lines
Specifications
ApplicationCompressed Air, Water, Grease, Paint, Limited Vacuum And Limited Gases
Domestic/ImportImport
End StyleMNPT
MaterialSteel
Nominal Size1/2 in
Pressure Rating250 psi
Temperature Rating-4 to 176 deg F
TypeIndustrial Interchange
Additional Information
Country of OriginUS
