Mitsubishi Materials USA Corp MITSU 198310

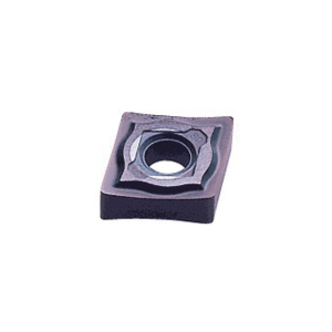

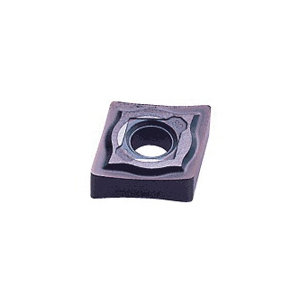

Mitsubishi Materials USA Corp 198310 Turning Insert, ANSI Code: CNGG432MJ HTi10, CNGG Insert, 432 Insert, Rhombic Shape, Neutral Cutting, For Use On Cast Iron, Non-Ferrous Metals, Heat-Resistant Alloy and Titanium Alloy, Carbide
Invoice description:
Cngg432mj Hti10 Insert, 198310
Factory Order
Mitsubishi Materials USA Corp Turning Insert, CNGG Insert, 432 Insert, Rhombic, 1/2 in Inscribed Circle, 0.187 in Thickness, MJ Chipbreaker, 0.031 in Corner Radius, 0.203 in Hole Dia, Manufacturers Grade: HTi10, ANSI Code: CNGG432MJ HTi10, ISO Code: CNGG120408-MJ HTi10, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, For Use On: Cast Iron, Non-Ferrous Metals, Heat-Resistant Alloy and Titanium Alloy
Specifications
ApplicationLight Cutting
ANSI CodeCNGG432MJ HTi10
ChipbreakerMJ
Corner Radius0.031 in
Cutting DirectionNeutral
For Use OnCast Iron, Non-Ferrous Metals, Heat-Resistant Alloy and Titanium Alloy
Hole Diameter0.203 in
Included Angle80 deg
Inscribed Circle1/2 in
Insert Size432
Insert StyleCNGG
ISO CodeCNGG120408-MJ HTi10
Manufacturers GradeHTi10
MaterialCarbide
Relief Angle0 deg
ShapeRhombic
Thickness0.187 in
