Pramet PRAMET 6753817

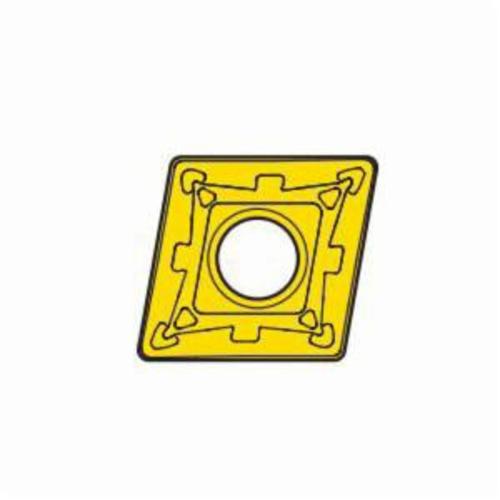

Pramet 6753817 Turning Insert, ANSI Code: CNMG 542-M:T9315, CNMG Insert, Material Grade: H, K, P, 542 Insert, Diamond Shape, 16 Seat, Negative Rake, For Use On Hardened Steel, Cast Iron and Steel, Carbide, Manufacturers Grade: T9315
Invoice description:
Cnmg 542-m:t9315 Turning Ins - Negative Cnmg 542-m:t9315 Turning Insert - Negative
In stock
(20)

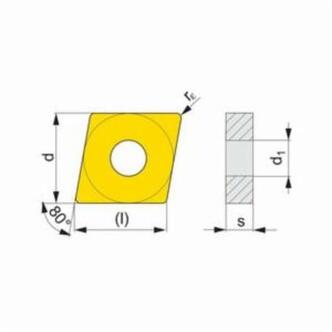

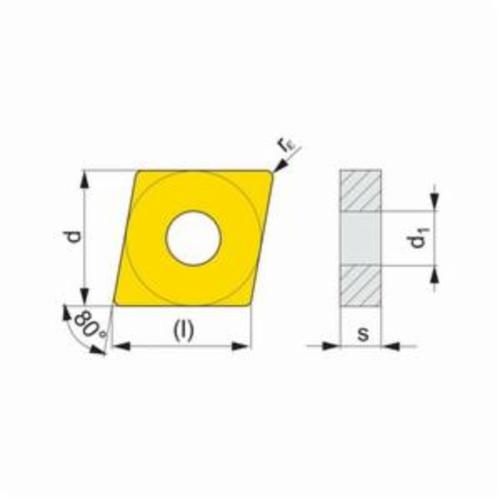

Pramet Turning Insert, CNMG Insert, 542 Insert, Diamond, 7 mm Maximum Depth of Cut, 15.875 mm Inscribed Circle, 6.35 mm Thickness, 16.1 mm Length, 16 Seat, Negative Rake, M Chipbreaker, 0.8 mm Corner Radius, 6.35 mm Hole Dia, Manufacturers Grade: T9315, ANSI Code: CNMG 542-M:T9315, ISO Code: CNMG 160608E-M:T9315, 80 deg Included Angle, 0 deg Relief Angle, Carbide, MT-CVD-Al2O3 Coated, Material Grade: H, K, P, For Use On: Hardened Steel, Cast Iron and Steel
Features
- T9315 grade functionally gradient substrate with fine structure
- Relatively low cobalt content
- Thick MT-CVD coating with a dominant Al2O3 layer
- Highly versatile material with a balanced ratio of abrasion resistance and operative reliability
- Special surface finish for coating
- High cutting speeds
- Continuous to slightly interrupted cut
Specifications
ApplicationFinishing and Semi-Roughing
ANSI CodeCNMG 542-M:T9315
ChipbreakerM
Corner Radius0.8 mm
FinishMT-CVD-Al2O3 Coated
For Use OnHardened Steel, Cast Iron and Steel
Hole Diameter6.35 mm
Included Angle80 deg
Inscribed Circle15.875 mm
Insert Size542
Insert StyleCNMG
ISO CodeCNMG 160608E-M:T9315
Length16.1 mm
Manufacturers GradeT9315
MaterialCarbide
Material GradeH, K, P
Maximum Depth of Cut7 mm
RakeNegative
Relief Angle0 deg
Seat Size16
ShapeDiamond
Thickness6.35 mm
Additional Information
Standards/ApprovalPROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
Country of OriginCZ
