Sandvik Coromant SANC 6255452

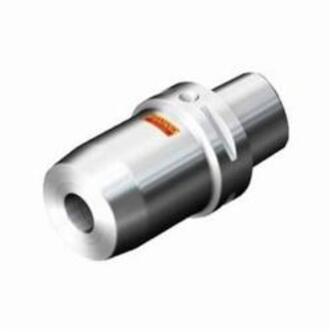

Sandvik Coromant Hydraulic Tool Holder and Chuck, Heavy Duty High Precision, Series: CoroChuck 930, C5 Connection, Coromant Capto Shank, 1.969 in Taper, 0.984 in Diameter Hole, 2.244 in Diameter Nose, 3.465 in Projection, 1.85 in Clamping Depth, 4.645 in Overall Length, System Size Machine Side: C5, ANSI Code: 930-C5-HD-25-088, ISO Code: 930-C5-HD-25-088, Yes Through Coolant

• Features

• Best pull out security on the market thanks to the latest Fulcrum technology used for uppermost clamping performance with high clamping force, the clamping force ensures repeatability, time after time
• Easy handling with torque wrench used for secure clamping
• The machine side coupling is ground as the last operation to guarantee the highest demands on precision
• Precision run out <4 umm (157 uminch) at 2.5XDC
• High precision repetition
• Balancing according to DIN 69888
• Clamping length can be adjusted with an adjustment screw
• High metal removal rate provides increased productivity
• Secure process and safe machining
• Quick tool change and setup
