Sandvik Coromant SANC 6415710

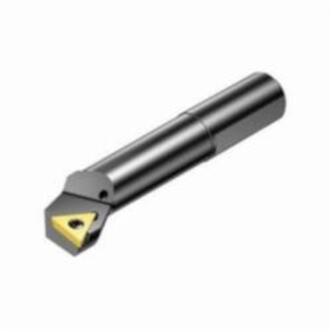

Sandvik Coromant 6415710 Indexable Boring Bar With Indexable Inserts, R429U-Axx..TC Toolholder, 0.433 in Dia Min Bore, Right Hand of Holder, 3.189 in OAL
Invoice description:
Boring Bar R429-a12-1105 Tc06
Factory Order
Sandvik Coromant Indexable Boring Bar, 0.433 in Minimum Bore, 2.165 in Maximum Bore Depth, 3.189 in Overall Length, 0.472 in Shank Diameter, Cylindrical with 3-Flat Shank, Right Hand of Holder, R429U-Axx..TC Toolholder, Insert Compatibility: TCMT 06T102 (RE<0.4), Triangle Insert, 5/32 in Inscribed Circle, 5513 020-44 Insert Screw, 5/64 in Insert Thickness, Steel, Yes Through Coolant
Features
- Axial concentric coolant entry
- 20 bar coolant
- 40 - 60 deg insert screw clamping interface
- Axial inclined coolant exit
- 0 deg orthogonal rake
- 11.5 mm H shank
- 92 deg cutting edge
- -9 deg inclination
- 81 mm L functional
- 55 mm L usable
Specifications
ApplicationFor fine boring head
Hand of HolderRight
Inscribed CircleMay-32 in
Insert CompatibilityTCMT 06T102 (RE<0.4)
Insert Screw5513 020-44
Insert ShapeTriangle
Insert ThicknessMay-64 in
MaterialSteel
Maximum Bore Depth2.165 in
Minimum Bore Diameter0.433 in
Overall Length3.189 in
Shank Diameter0.472 in
Shank TypeCylindrical with 3-Flat
Through Coolant (Yes/No)Yes
Toolholder TypeR429U-Axx..TC
Additional Information
Includes5763196 Screw and 5764138 Key
Country of OriginDE
