CDI Torque Products WMS 350NMIMH

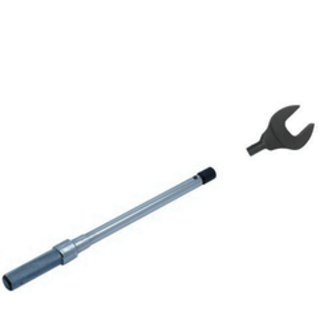

CDI Torque Products 350NMIMH Dual Scale Interchangeable Head Torque Wrench, X Drive, 59 to 251 ft-lb, 2 ft-lb, 24-1/2 in OAL

Invoice description: Wrench, Torque Intrchngb Le Head

UPC: 662459973764
UNSPSC: 27111715
Manufacturer PN: 350NMIMH
$392.40 EA
Factory Order
Estimated to ship in 9 days
QTY:


CDI Torque Products Interchangeable Head Torque Wrench, Dual Scale, X Drive, 59 to 251 ft-lb Torque, Graduations: 2 ft-lb, 24-1/2 in Overall Length, CW/CCW Rotation, +/-4%, +/-6% Accuracy, Setting: Manual, Audible Click/Tactile Impulse Indicator, Specifications Met: ASME B107.14M-1994, Steel

  • Features

  • Single scale, dual direction
  • Positive lock with spring loaded pull down lock ring
  • Fast, accurate and easy to set
  • Easy to read laser marked scales
  • Flex head pivots 15 deg in both directions
  • Rugged for industrial use
  • Accuracy: +/-4% CW, +/-6% CCW of indicated value, CW from 20 to 100% of full scale
  • Interchangeable heads permit ratcheting, fixed or open end torquing capability with adjustable torque wrench bodies
  • A push of the locking pin provides quick-change action with a wide range of head styles to choose from
  • Micrometer type adjustment ensures fast accurate settings and changes

Specifications

ApplicationFor use on production lines and other applications where a specific torque is required for repetitive operations
Accuracy+/-4%, +/-6%
Drive SizeX
Graduations2 ft-lb
Indicator TypeAudible Click/Tactile Impulse
MaterialSteel
Overall Length24-1/2 in
Rotation TypeCW/CCW
SettingManual
Specifications MetASME B107.14M-1994
Torque Range59 to 251 ft-lb
TypeDual Scale

Additional Information

WarrantyLimited
Standards/ApprovalISO 6789
Country of OriginUS
