GARR GARR 58610

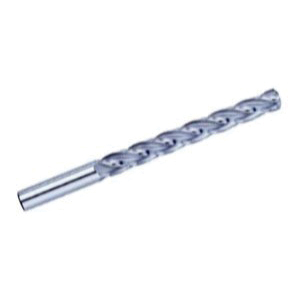

GARR 58610 4000 Core Drill, 7/16 in Drill - Fraction, 0.4375 in Drill - Decimal Inch, Submicron Grain Solid Carbide

UNSPSC: 23241605
Manufacturer PN: 58610
$87.12 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR Core Drill, Series: 4000, 7/16 in Drill Size - Fraction, 0.4375 in Drill Size - Decimal Inch, 5 in Overall Length, 3-1/2 in Cutting Depth, 4 Flutes, 30 deg Spiral Flute, 3-1/2 in Flute Length, 7/16 in Shank, Submicron Grain Solid Carbide Cutting Edge, Submicron Grain Solid Carbide, Applicable Materials: Cobalt Base Alloy, Nickel Base Alloy, Iron Base Alloy, Monel, Titanium Alloy and Stainless Steel

  • Features

  • Cored applications only
  • Gets to finish diameter when too much material remains for reamer
  • 60 deg lead chamfer allows easy follow through from existing hole
  • Live tooling recommended on lathe processes

Specifications

Applicable MaterialsCobalt Base Alloy, Nickel Base Alloy, Iron Base Alloy, Monel, Titanium Alloy and Stainless Steel
Cutting Depth3-1/2 in
Cutting Edge MaterialSubmicron Grain Solid Carbide
Drill Size - Decimal Inch0.4375 in
Drill Size - Fraction7/16 in
Flute Length3-1/2 in
Flute Type30 deg Spiral
MaterialSubmicron Grain Solid Carbide
Number of Flutes4
Overall Length5 in
Series4000
Shank Size7/16 in
