YG-1 YG1 D2146010

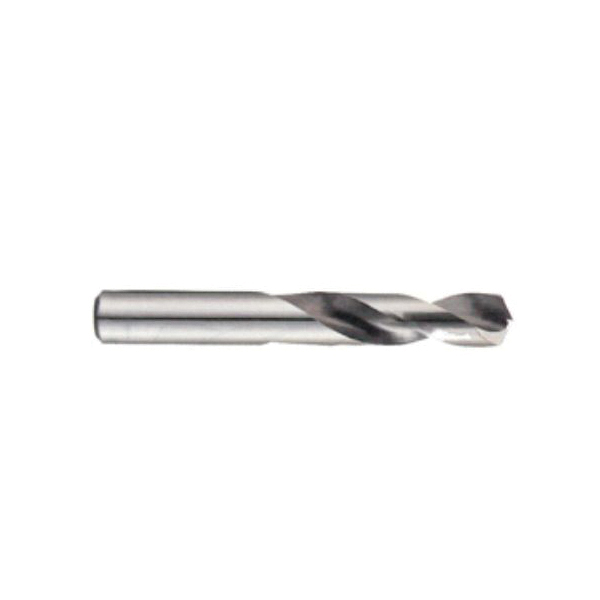

YG-1 D2146010 Screw Machine Drill, 5/32 in Drill - Fraction, 0.1562 in Drill - Decimal Inch, M42 HSS-Co 8, Bright
Invoice description:
D2146010 Screw Machine D Ril L 5/32 In Dia X
Factory Order
YG-1 Screw Machine Drill, Series: D2146, Imperial, 5/32 in Drill - Fraction, 0.1562 in Drill - Decimal Inch, 2-1/16 in Overall Length, 1 in Cutting Depth, Right Spiral Flute, 1 in Flute Length, 5/32 in Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, M42 HSS-Co 8 Cutting Edge, M42 HSS-Co 8, Bright, Applicable Materials: Alloyed/Non-Alloyed, Cast Steel, Gray Cast Iron, Graphite, Malleable Cast Iron and Steel
Features
- Right hand spiral, wider flute geometry
Specifications
ApplicationFor drilling applications
Applicable MaterialsAlloyed/Non-Alloyed, Cast Steel, Gray Cast Iron, Graphite, Malleable Cast Iron and Steel
Cutting Depth1 in
Cutting DirectionRight Hand
Cutting Edge MaterialM42 HSS-Co 8
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.1562 in
Drill Size - Fraction5/32 in
FinishBright
Flute Length1 in
Flute TypeRight Spiral
MaterialM42 HSS-Co 8
Overall Length2-1/16 in
Point Angle135 deg
Point TypeSplit
SeriesD2146
Shank Size5/32 in
Shank TypeStraight
Additional Information
Standards/ApprovalANSI Specified
