YG-1 YG1 DH451098 3XD

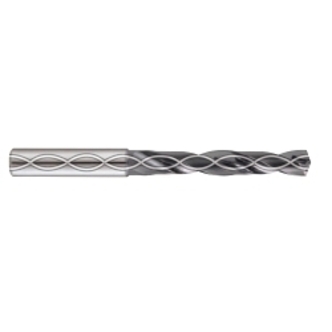

YG-1 DH451098 DH451 INOX Short Length Dream Drill With Through Coolant Channel, 9.8 mm Drill - Metric, 0.3858 in Drill - Decimal Inch, Solid Carbide, TiAlN Coated
Invoice description:
Yg Inox 9.8mm [.3858] Drill 3xd Coolant
In stock
(20)
YG-1 Short Length Dream Drill, Series: DH451 INOX, Metric/Imperial, 9.8 mm Drill - Metric, 0.3858 in Drill - Decimal Inch, 89 mm Overall Length, 3XD Cutting Depth, Spiral Flute, 47 mm Flute Length, 10 mm Shank, Straight Shank, 140 deg Point, Split Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, Solid Carbide, TiAlN Coated, Applicable Materials: Nickel Alloys, Stainless Steels and Titanium
Features
- Special flute shape and geometry for suitable machining of stainless steel
- Excellent chip evacuation due to better surface treatment
- Point R thinning makes the superior centering and chip curl
- TiAlN coating achieves the better surface finishes and longer tool life
Specifications
Applicable MaterialsNickel Alloys, Stainless Steels and Titanium
Cutting Depth3XD
Cutting DirectionRight Hand
Cutting Edge MaterialSolid Carbide
Drill Diameter Measurement SystemMetric/Imperial
Drill Size - Decimal Inch0.3858 in
Drill Size - Metric9.8 mm
FinishTiAlN Coated
Flute Length47 mm
Flute TypeSpiral
MaterialSolid Carbide
Overall Length89 mm
Point Angle140 deg
Point TypeSplit
SeriesDH451 INOX
Shank Size10 mm
Shank TypeStraight
Additional Information
Standards/ApprovalDIN 6537
