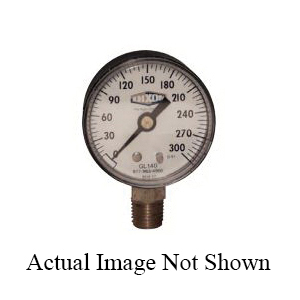

Dixon DIXV GL340

Dixon GL340 Standard Dry Gauge, 0 to 200 psi, 1/4 in Connection, 2-1/2 in Dial, +/- 3-2-3 %

UPC: 089109707843
UNSPSC:
Manufacturer PN: GL340
$17.91 EA
Factory Order
Estimated to ship in 6 days
QTY:


Dixon Gauge, Standard Dry, 0 to 200 psi, 1/4 in, 2-1/2 in Dial Diameter, +/- 3-2-3 % Accuracy, -40 to 150 deg F, Lower Mount, ABS Case

  • Features

  • PowerFlex movement with polyester segment, designed to resist the effects of shock, vibration and pulsation
  • Black aluminum pointer
  • C-shaped bronze safety bourdon tube
  • Do not use in connection with drinking water
  • Wash hands after handling
  • Polycarbonate window
  • Corrosion-resistant, ABS plastic case

Specifications

ApplicationPumps, hydraulic and pneumatic systems, compressors, machine tools and many other installations where it is necessary to have a gauge with a non-corrosive movement
Accuracy+/- 3-2-3 %
Connection Size1/4 in
Dial Diameter2-1/2 in
MaterialABS Case
Mounting TypeLower
Pressure Range0 to 200 psi
Temperature Rating-40 to 150 deg F
TypeStandard Dry
