Dixon DIXV IBV38

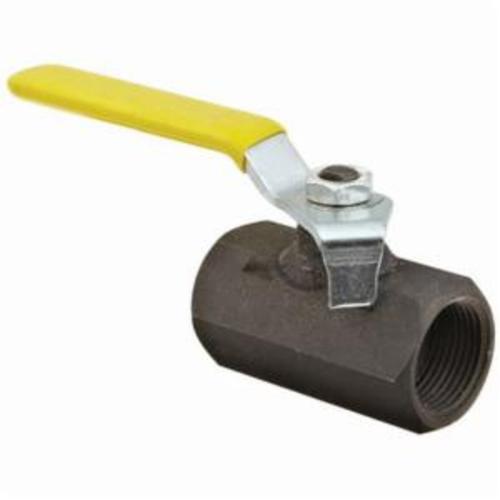

Dixon IBV38 2-Way Ball Valve, 3/8 in Nominal, FNPT End Style, Carbon Steel Body, Full Port, PTFE Seat/Seal/Thrust Washer Softgoods

Invoice description: 3/8 Steel Ball Valve 3/8 Steel Ball Valve

UNSPSC: 40141607
Manufacturer PN: IBV38
$78.10 EA
Factory Order
Estimated to ship in 7 days
QTY:


Dixon Ball Valve, 2-Way, Series: IBV, 3/8 in Nominal, FNPT, 2000 psi WOG, 150 psi WSP, Full Port, Media: Air, Water, Oil, Gas and Steam, Manual Actuator, Chromium Plated Ball, Carbon Steel Body, PTFE Seat/Seal/Thrust Washer

  • Features

  • Blow out proof stem
  • Adjustable packing gland
  • PTFE seat, seal and thrust washer

Specifications

Actuator TypeManual
Ball MaterialChromium Plated
Body MaterialCarbon Steel
End StyleFNPT
MediaAir, Water, Oil, Gas and Steam
Nominal Size3/8 in
Port TypeFull
Pressure Rating2000 psi WOG, 150 psi WSP
SeriesIBV
Softgoods MaterialPTFE Seat/Seal/Thrust Washer
Type2-Way
