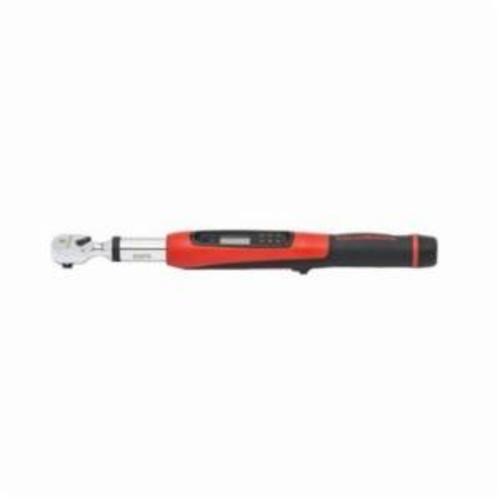

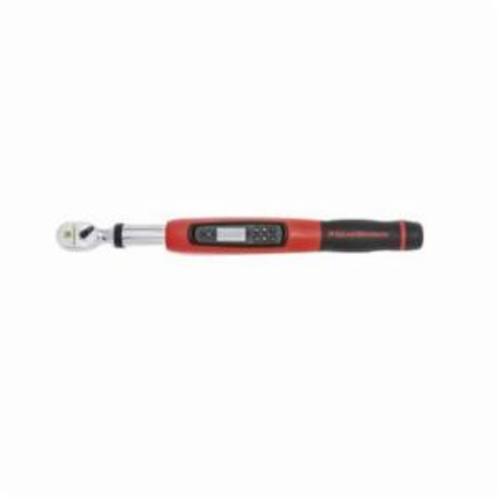

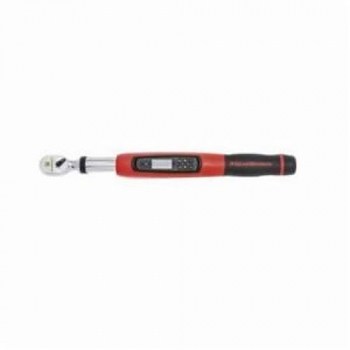

GEARWRENCH® GW 85076

GEARWRENCH® 85076 Electronic Torque Wrench, 3/8 in Drive, 7.1 to 99.6 ft-lb, 0.1 ft-lb/0.1 N-m Graduation, 15-3/4 in OAL, ASME B107.28M

UPC: 099575850769
UNSPSC: 27111715
Manufacturer PN: 85076
$342.44 EA
In stock (9)
QTY:


GEARWRENCH® Electronic Torque Wrench, 3/8 in Drive, 7.1 to 99.6 ft-lb Torque, Graduations: 0.1 ft-lb/0.1 N-m, 15-3/4 in Overall Length, CW/CCW Rotation, +/-2% CW, +/-3% CCW Accuracy, LED Display, Buzzer with LED Light Indicator, (2) AA Alkaline Battery Power Source, Specifications Met: ASME B107.28M

  • Features

  • Digitally tracks torque measurement, multiple alerts when the target torque is reached prevent over torqueing of bolts
  • Handle vibrates, buzzer sounds and led light shows solid
  • Target torque alert gives a warning as the target torque setting is approached, so there is less chance of over torqueing a bolt
  • Accurate in clockwise direction +/-2 and +/-3% in a counter clockwise direction, from 20% to 100% of full scale
  • 5 torque measurement units available for working in N-m, ft-lb, in-lb and kgf-m, kgf-cm
  • 72-tooth ratchet mechanism with a 5 deg swing arc
  • Handle and housing are oil and solvent resistant

Specifications

Drive Size 3/8 in
Torque Range 7.1 to 99.6 ft-lb
Graduations 0.1 ft-lb/0.1 N-m
Overall Length 15-3/4 in
Rotation Type CW/CCW
Accuracy +/-2% CW, +/-3% CCW
