Midland Industries MIDM 28553

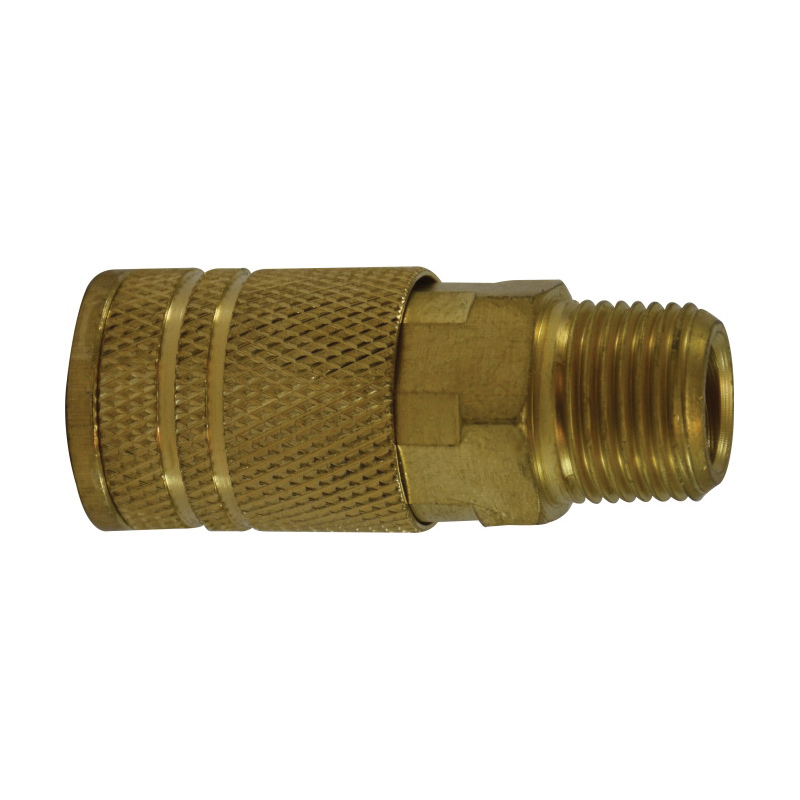

Midland Industries 28553 Industrial Interchange Pipe Coupler, 3/8 in Nominal, FNPT, Brass, Import
Invoice description:
Coupler Pipe 3/8in Fnpt 250psi Brs Midland Industries 28553 Industrial Interchange Pipe Coupler, 3/8 In Nominal, Fnpt, Brass, Domestic
Factory Order
Midland Industries Pipe Coupler, Industrial Interchange, 3/8 in Nominal, FNPT, 250 psi, -4 to 176 deg F, Brass, Import
Features
- Compact and economical design uses a ball locking mechanism consisting of captive steel balls that engage the locking groove on the mating nipple
- Sliding spring loaded sleeve on the coupler must be manually retracted in order to connect or disconnect the nipple
- It is easy to do, but two hands are normally required
- Couplings are widely used to connect compressed air and low pressure fluid lines
- NBR seat and stainless steel springs
Specifications
ApplicationFor connecting compressed air and low pressure fluid lines
Domestic/ImportImport
End StyleFNPT
MaterialBrass
Nominal Size3/8 in
Pressure Rating250 psi
Temperature Rating-4 to 176 deg F
TypeIndustrial Interchange
Additional Information
Country of OriginUS
