Midland Industries MIDM 28565

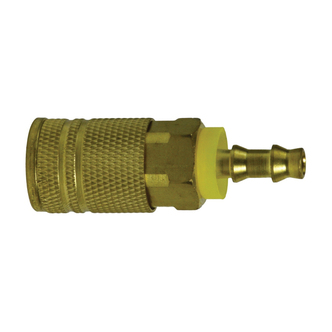

Midland Industries 28565 Industrial Interchange Hose ID Coupler, 1/4 in Nominal, Push-On x Tube, Brass, Import
Invoice description:
Coupler Id Hose 1/4in Pu Sh Onxtube Brs Midland Industries 28565 Industrial Interchange Hose Id Coupler, 1/4 In Nominal, Push-on X Tube, Brass, Domestic
Factory Order
Midland Industries Hose ID Coupler, Industrial Interchange, 1/4 in Nominal, Push-On x Tube, 250 psi, -4 to 176 deg F, Brass, Import
Features
- Compact and economical design uses a ball locking mechanism consisting of captive steel balls that engage the locking groove on the mating nipple
- Sliding spring loaded sleeve on the coupler must be manually retracted in order to connect or disconnect the nipple
- It is easy to do, but two hands are normally required
- Couplings are widely used to connect compressed air and low pressure fluid lines
- NBR seat and stainless steel springs
Specifications
ApplicationFor connecting compressed air and low pressure fluid lines
Domestic/ImportImport
End StylePush-On x Tube
MaterialBrass
Nominal Size1/4 in
Pressure Rating250 psi
Temperature Rating-4 to 176 deg F
TypeIndustrial Interchange
Additional Information
Country of OriginUS
