Midland Industries MIDM 28996

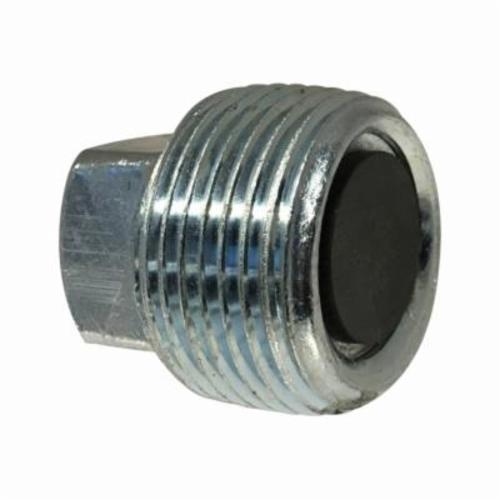

Midland Industries 28996 Magnetic Drain Plug, 3/8-18 Nominal, NPT, Steel

Invoice description: Plug Dr Mag 3/8-18 Npt S Tl Midland Industries 28996 Magnetic Drain Plug, 3/8-18 Nominal, Npt, Steel

UNSPSC: 40183101

Manufacturer PN: 28996

^$3.83 EA

Factory Order
Estimated to ship in 7 days

enlarge

Product Overview

Midland Industries Magnetic Drain Plug, 3/8-18 Nominal, NPT, Steel, 0.805 to 0.86 in L

Features
Constant flaking effect of normal wear of moving parts
Particles not removed by flushing operations after boring or machining
Chipping due to sub-surface casting flaws
Minute component breakdown caused by stress usage
Similar to standard pipe or straight thread drain plugs with one important difference a permanent magnet is fastened to the plug body
Magnet attracts and holds abrasive, ferrous metal particles preventing their circulation through the lubrication or hydraulic system
Numerous manufacturers of gear boxes, transmissions, engines, and hydraulic systems for the automotive, aircraft, agricultural and machinery industries
0.428 - 0.440 in head width
0.435 - 0.445 in recess dia

Specifications

ApplicationOutbound Engines, Earthmoving Equipment, Combines, Balers, Crawler Tractors, Lift Trucks, Mining Equipment, Military Vehicles, Turbine Engines, Truck Axles and Heavy Duty Transmissions

Dimensions0.805 to 0.86 in L

End StyleNPT

MaterialSteel

Nominal Size3/8-18
