MMM MIDM 32346

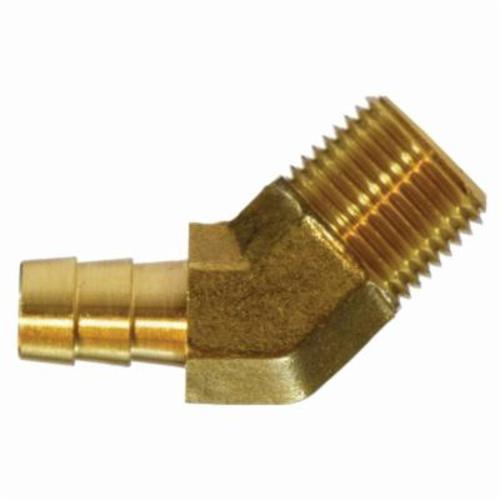

MMM 32346 Elbow, 1/2 x 1/4 in Nominal, Hose Barb x MIP End Style, Brass
Invoice description:
Elbow 1/2x1/4in Hose Bar Bxmip 150psi Mmm 32346 Elbow, 1/2 X 1/4 In Nominal, Hose Barb X Mip End Style, Brass
Factory Order
MMM Elbow, Fitting/Connector Type: 45 deg Elbow, 1/2 x 1/4 in Nominal, Hose Barb x MIP End Style, 150 psi Pressure, -40 to 160 deg F, Brass, 1 x 0.84 in
Features
- +/- 0.02 tolerance on all dimensions
- For use with hose clamp, similar type clamp or a crimped ferrule
- 0.59 in body size
Specifications
Dimensions1 x 0.84 in
End StyleHose Barb x MIP
Fitting/Connector Type45 deg Elbow
MaterialBrass
Nominal Size1/2 x 1/4 in
Pressure Rating150 psi
Temperature Rating-40 to 160 deg F
Additional Information
Country of OriginUS
