Dixon DIXV 2740604C

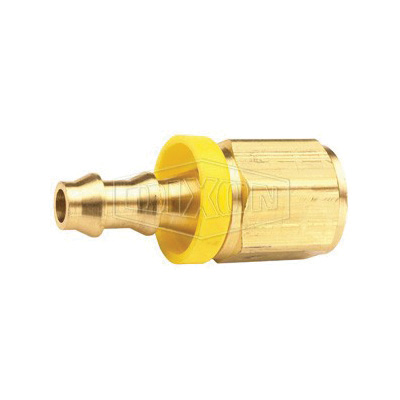

Dixon 2740604C 274 Push-On Hose Barb, 1/4 x 3/8 in Nominal, FNPT x Hose Barb End Style, Brass, Domestic
Invoice description:
Adapter 1/4 Nptf X 3/8 B Arb
In stock
(1)
Dixon, 2740604C, Push-On Hose Barb, Series: 274, Fitting/Connector: Adapter, 1/4 x 3/8 in Nominal, FNPT x Hose Barb End Style, 5/8 in Hex, 1-21/32 in Length, 2 Barb, 0.92 in Barb Length, 350 psi Pressure, -40 to 150 deg F, Brass, Domestic
Features
- Trim hose end with smooth square cut
- Lubricate either push-on fitting, hose or both
- Insert push-on fitting into hose until first barb is in hose
- Place end of fitting against a flat object (bench, wall, etc.) and grip the hose 1 in from end
- Push with a steady force until end of hose is covered by yellow plastic cap
- 0.92 in L barb
- 2 barbs
- Lok-On fittings will properly grip Lok-On hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap
- Dryseal construction
- No hose clamps or ferrules are needed
Specifications
ApplicationFor pneumatic service, most fluids, low pressure hydraulics and non-potable water service
Barb Length0.92 in
Domestic/ImportDomestic
End StyleFNPT x Hose Barb
Fitting/Connector TypeAdapter
Hex Size5/8 in
Length1-21/32 in
MaterialBrass
Nominal Size1/4 x 3/8 in
Number of Barb2
Pressure Rating350 psi
Series274
Temperature Rating-40 to 150 deg F
Additional Information
WarrantyLimited
Standards/ApprovalSAE J476/J512/J514/J516|PROP65: This product can expose you to chemicals including lead, which is known to the State of Califonia to cause cancer and birth defects or other reproductive ham. Wash hands after handling. For more information go to www.P65Wamings.ca.gov.
Country of OriginUS
