HARRINGTON HARR LB015 1-1/2T 15

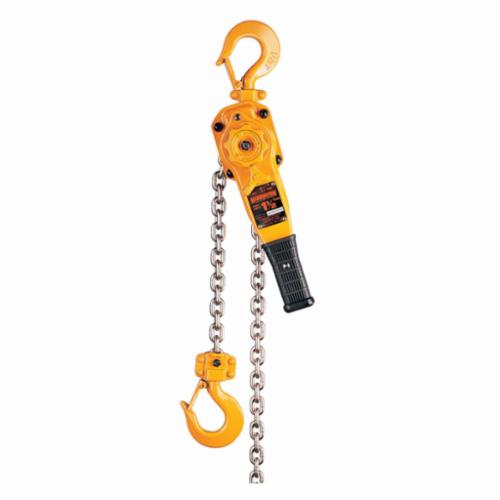

HARRINGTON LB015-15 LB Series Compact Lever Hoist, 1.5 ton Load, 15 ft H Lifting, 64 lb Rated, 1.3 in Hook

UNSPSC: 24101602
Manufacturer PN: LB015-15
$1,145.36 EA
Factory Order
Estimated to ship in 56 days
QTY:


HARRINGTON Lever Hoist, Compact, Series: LB Series, 1.5 ton, 15 ft Lifting Height, 13.2 in Minimum Between Hooks, 1.3 in Hook Opening, 64 lb Pull to Lift, 10.4 in Lever Length, Steel Chain, 1 Reeving, Weston Brake, 13.2 in L x 5 in W x 6.3 in D

  • Features

  • Capacities 3/4 ton through 9 ton
  • Compact design makes it a perfect fit for use in tight quarters
  • Steel body is more durable yet lighter weight than die-cast aluminum models
  • Revolutionary freewheeling offers one handed operation
  • 370 degree handle rotation and pivot and swivel top hook for easy rigging
  • Single load chain through 3 tons
  • Rugged, all-steel construction that actually weighs less than comparable aluminum models
  • Positive braking action with Weston-style load brake incorporating two moisture-resistant brake pads with four braking surfaces
  • Protection against dirt and moisture with a totally enclosed brake mechanism
  • Patented spring-loaded freewheel mechanism permits easy adjustment of the load chain and safeguards against accidental freewheeling under load

Specifications

ApplicationFor use in heavy-duty construction work, mining, manufacturing, shipbuilding, day-to-day maintenance and repair
Type Compact
Series LB Series
Load Capacity 1.5 ton
Lifting Height 15 ft
Minimum Between Hook 13.2 in
Hook Opening 1.3 in
Pull to Lift Rated L 64 lb
Lever Length 10.4 in
Chain Material Steel

Documents
