Midland Industries MIDM 38015

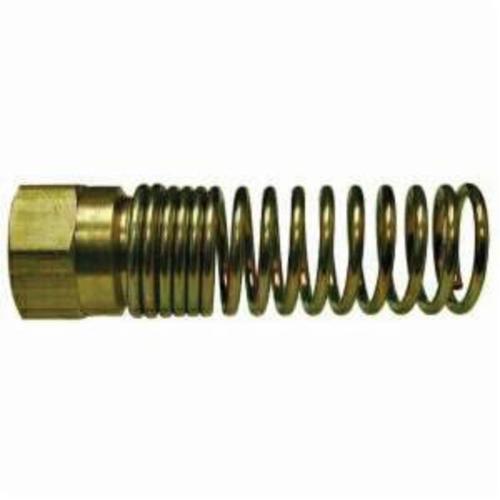

Midland Industries 38015 Nut and Spring Assembly, 3/8 in Nominal, Hose End Style, CA360 Brass

Invoice description: Assembly Spr And Nut Nut & Spr 3/8in Midland Industries 38015 Nut And Spring Assembly, 3/8 In Nominal, Hose End Style, Ca360 Brass

UNSPSC: 40183101
Manufacturer PN: 38015
$4.60 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries Nut and Spring Assembly, Nut & Spring Fitting/Connector, 3/8 in Nominal, Hose End Style, 1.03 in Hex, 3.55 in Length, 125 psi Pressure, -40 to 120 deg F, CA360 Brass

  • Features

  • Easy to assemble with a good selection of hose end configurations
  • Can be used for nearly any brake line
  • Brass material offers excellent resistance against corrosion
  • Pressure determined by maximum working pressure for hose size up to 125 psi
  • /- 0.02 tolerance on all dimensions

Specifications

ApplicationAir Brake Hose connection
End StyleHose
Fitting/Connector TypeNut & Spring
Hex Size1.03 in
Length3.55 in
MaterialCA360 Brass
Nominal Size3/8 in
Pressure Rating125 psi
Temperature Rating-40 to 120 deg F

Additional Information

Standards/ApprovalSAE and DOT (FMVCS 10 GAL)
Country of OriginTW
