Midland Industries MIDM 640400

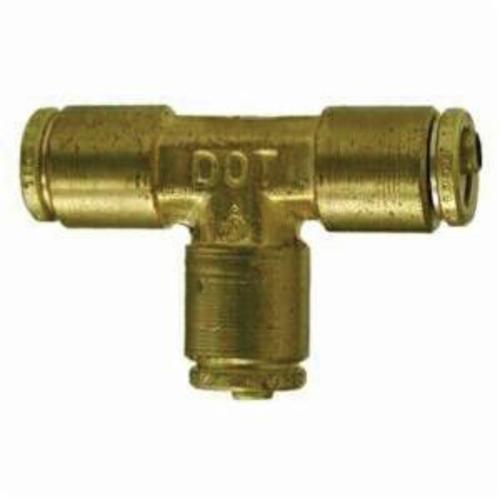

Midland Industries Tube Union Tee, Tee Fitting/Connector, 1/4 in Nominal, Push-In End Style, 150 psi Pressure, -40 to 200 deg F, Brass

• Features

• Fast assembly - No tools required, simply push tubing in, saves up to 75% of assembly time compared to standard air compression fittings, no loose parts to handle
• Fast disconnect - Hold the collet collar with two fingers and pull out tube
• Reusable - Can be connected and disconnected several times
• Reliable sealing - using recommended tubing, full sealing is guaranteed
• Versatility - Buna-N Oring standard, viton and others avail, secure tube retention, pulling on tubing only serves to tighten the connection
• Pre-Applied Teflon based pipe sealant on all male pipe threads, saving customer additional labor
• Full flow design, provides more flow area than conventional fittings with internal tube supports even in the swivels
• DOT fittings are constructed with an all brass captive eyelet which allows for maximum flow
• The brass captive eyelet with extended length is floating and has a machined top end radius for easy installation of tubing
• 0.37 in body

Specifications

Additional Information

Documents

• Catalog
