Midland Industries MIDM 38020

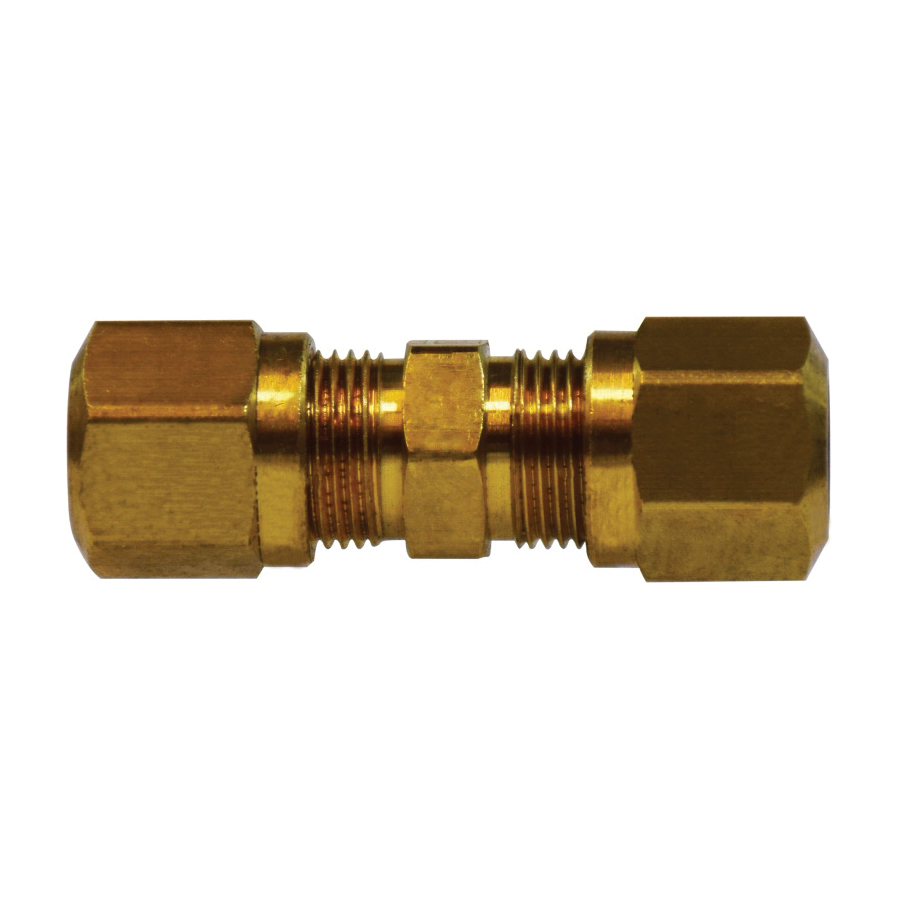

Midland Industries 38020 Tube Union, 3/8 in, Nylon AB, CA360 Brass

Invoice description: Union 3/8 Air Brake-nab

UNSPSC: 40183103
Manufacturer PN: 38020
$5.86 EA
Factory Order
Estimated to ship in 0 days
QTY:


Midland Industries Tube Union, Union, 3/8 in Nominal, Nylon AB, 0.56 in Hex, 1.1 in Length, 150 psi, -40 to 200 deg F, CA360 Brass

  • Features

  • Easy to assemble (no tube preparation or flaring required) built in tube support
  • Fair vibration resistance
  • Fittings utilize a ribbed sleeve for compression and positive grip
  • May be used with copper tubing by replacing nut, sleeve and insert with long nut and spherical sleeve, insert should be removed for copper tubing use
  • Additional number of turns from hand-tight 4
  • /- 0.02 tolerance on all dimensions
  • 17/32-24 thread size B

Specifications

ApplicationAir Brake Systems Except Where Temperatures Exceed 200 deg F or Where Battery Acid Can Drip On Tubing, Used With Nt Nylon Tubing SAE J844 Type A And B
End StyleNylon AB
Fitting/Connector TypeUnion
Hex Size0.56 in
Length1.1 in
MaterialCA360 Brass
Nominal Size3/8 in
Pressure Rating150 psi
Temperature Rating-40 to 200 deg F

Additional Information

Standards/ApprovalSAE 100101BA and DOT FMVSS 571,106
Country of OriginTW
