MMM MIDM 38030

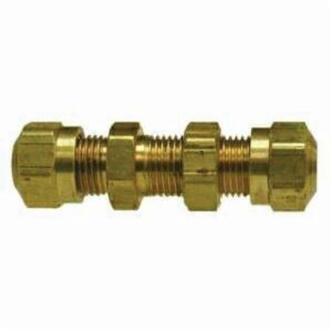

MMM 38030 Tube Bulkhead Union, 1/2 in, Nylon AB, CA360 Brass
Invoice description:
Union Bhd Tube 1/2in Nyl Ab 1.88in Mmm 38030 Tube Bulkhead Union, 1/2 In, Nylon Ab, Ca360 Brass
Factory Order
MMM Tube Bulkhead Union, Union, 1/2 in Nominal, Nylon AB, 0.81 x 0.87 in Hex, 1.88 in Length, 150 psi, -40 to 200 deg F, CA360 Brass
Features
- Easy to assemble (no tube preparation or flaring required) built in tube support
- Fair vibration resistance
- Fittings utilize a ribbed sleeve for compression and positive grip
- May be used with copper tubing by replacing nut, sleeve and insert with long nut and spherical sleeve, insert should be removed for copper tubing use
- Additional number of turns from hand-tight 4
- /- 0.02 tolerance on all dimensions
Specifications
ApplicationAir Brake Systems Except Where Temperatures Exceed 200 deg F or Where Battery Acid Can Drip On Tubing, Used With Nt Nylon Tubing SAE J844 Type A And B
End StyleNylon AB
Fitting/Connector TypeUnion
Hex Size0.81 x 0.87 in
Length1.88 in
MaterialCA360 Brass
Nominal Size1/2 in
Pressure Rating150 psi
Temperature Rating-40 to 200 deg F
Additional Information
Standards/ApprovalSAE and DOT FMVSS 571,106
Country of OriginTW
