Midland Industries MIDM 38037

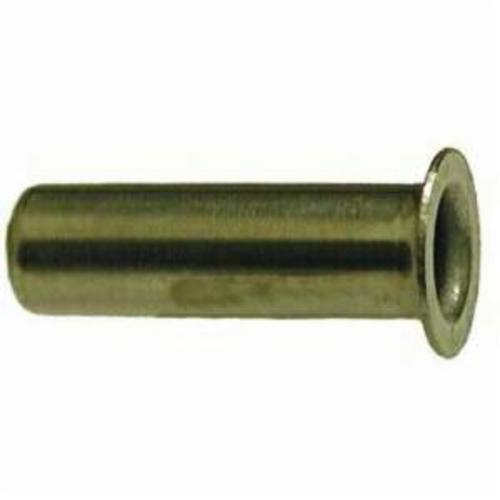

Midland Industries 38037 Tube Insert, 1/2 in, 300 Stainless Steel

Invoice description: Insert 1/2 Ss

UNSPSC: 40183100

Manufacturer PN: 38037

^$1.19 EA

Factory Order
Estimated to ship in 0 days

enlarge

Product Overview

Midland Industries Tube Insert, Insert, 1/2 in Nominal, 150 psi, -40 to 200 deg F, 300 Stainless Steel, 0.81 in L x 0.37 in H

Features
Easy to assemble (no tube preparation or flaring required) built in tube support
Fair vibration resistance
Fittings utilize a ribbed sleeve for compression and positive grip
May be used with copper tubing by replacing nut, sleeve and insert with long nut and spherical sleeve, insert should be removed for copper tubing use
Additional number of turns from hand-tight 4
/- 0.02 tolerance on all dimensions
For SAE# J844 tubing

Specifications

ApplicationAir Brake Systems Except Where Temperatures Exceed 200 deg F or Where Battery Acid Can Drip On Tubing, Used With Nt Nylon Tubing SAE J844 Type A And B

Dimensions0.81 in L x 0.37 in H

Fitting/Connector TypeInsert

Material300 Stainless Steel

Nominal Size1/2 in

Pressure Rating150 psi

Temperature Rating-40 to 200 deg F
