Midland Industries MIDM 38041

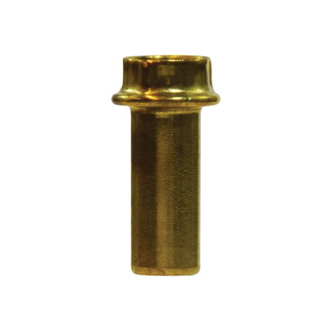

Midland Industries 38041 Tubing Insert, 3/8 in, Nylon AB, CA360 Brass
Invoice description:
Insert Tbg 3/8in Nyl Ab 150psi Ca360 Brs Midland Industries 38041 Tubing Insert, 3/8 In, Nylon Ab, Ca360 Brass
Factory Order
Midland Industries Tubing Insert, Insert, 3/8 in Nominal, Nylon AB, 150 psi, -40 to 200 deg F, CA360 Brass, 0.76 in L x 0.24 in H
Features
- Easy to assemble (no tube preparation or flaring required) built in tube support
- Fair vibration resistance
- Fittings utilize a ribbed sleeve for compression and positive grip
- May be used with copper tubing by replacing nut, sleeve and insert with long nut and spherical sleeve, insert should be removed for copper tubing use
- Additional number of turns from hand-tight 4
- /- 0.02 tolerance on all dimensions
Specifications
ApplicationAir Brake Systems Except Where Temperatures Exceed 200 deg F or Where Battery Acid Can Drip On Tubing, Used With Nt Nylon Tubing SAE J844 Type A And B
Dimensions0.76 in L x 0.24 in H
End StyleNylon AB
Fitting/Connector TypeInsert
MaterialCA360 Brass
Nominal Size3/8 in
Pressure Rating150 psi
Temperature Rating-40 to 200 deg F
Additional Information
Standards/ApprovalSAE and DOT FMVSS 571,106|SAE J844
Country of OriginTW
