MMM MIDM 38044

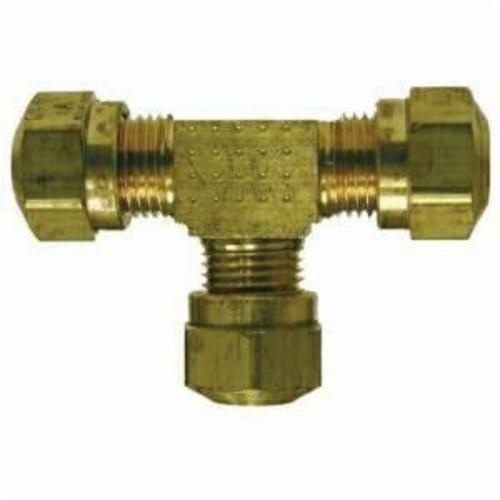

MMM 38044 Tube Tee, 1/4 in Dia, Nylon AB, CA360 Brass

Invoice description: Tee 1/4 Air Brake-nab

UNSPSC: 40183102

Manufacturer PN: 38044

^$10.53 EA

Factory Order
Estimated to ship in 0 days

enlarge

Product Overview

MMM Tube Tee, Tee, 1/4 in Dia Nominal, Nylon AB, 150 psi, -40 to 200 deg F, CA360 Brass

Features
Easy to assemble (no tube preparation or flaring required) built in tube support
Fair vibration resistance
Fittings utilize a ribbed sleeve for compression and positive grip
May be used with copper tubing by replacing nut, sleeve and insert with long nut and spherical sleeve, insert should be removed for copper tubing use
Additional number of turns from hand-tight 3
/- 0.02 tolerance on all dimensions
7/16-24 thread size B

Specifications

ApplicationAir Brake Systems Except Where Temperatures Exceed 200 deg F or Where Battery Acid Can Drip On Tubing, Used With Nt Nylon Tubing SAE J844 Type A And B

End StyleNylon AB

Fitting/Connector TypeTee

MaterialCA360 Brass

Nominal Size1/4 in Dia

Pressure Rating150 psi

Temperature Rating-40 to 200 deg F
