MMM MIDM 38054

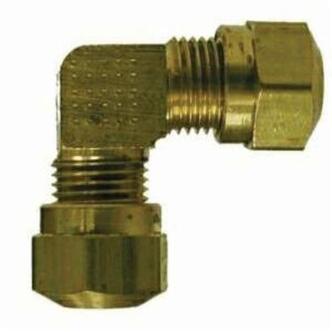

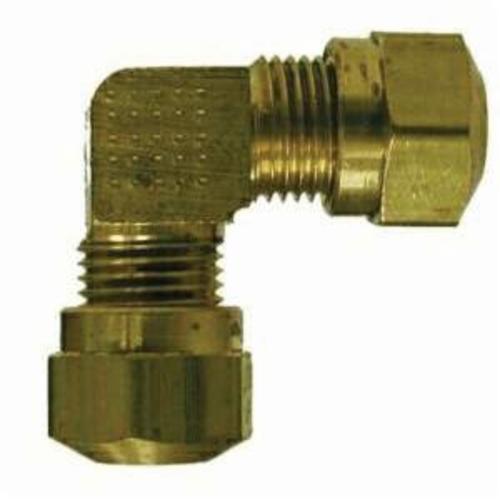

MMM 38054 90 deg Tube Elbow, 1/2 in Nominal, Nylon AB End Style, CA360 Brass
Invoice description:
Elbow Tube 90 Deg Elb 1/ 2in Nyl Ab Mmm 38054 90 Deg Tube Elbow, 1/2 In Nominal, Nylon Ab End Style, Ca360 Brass
Factory Order
MMM Tube Elbow, 90 deg Elbow Fitting/Connector, 1/2 in Nominal, Nylon AB End Style, 150 psi Pressure, -40 to 200 deg F, CA360 Brass
Features
- Easy to assemble (no tube preparation or flaring required) built in tube support
- Fair vibration resistance
- Fittings utilize a ribbed sleeve for compression and positive grip
- May be used with copper tubing by replacing nut, sleeve and insert with long nut and spherical sleeve, insert should be removed for copper tubing use
- Additional number of turns from hand-tight 4
- /- 0.02 tolerance on all dimensions
Specifications
ApplicationAir Brake Systems Except Where Temperatures Exceed 200 deg F or Where Battery Acid Can Drip On Tubing, Used With Nt Nylon Tubing SAE J844 Type A And B
End StyleNylon AB
Fitting/Connector Type90 deg Elbow
MaterialCA360 Brass
Nominal Size1/2 in
Pressure Rating150 psi
Temperature Rating-40 to 200 deg F
Additional Information
Standards/ApprovalSAE 100201BA and DOT FMVSS 571,106
Country of OriginTW
